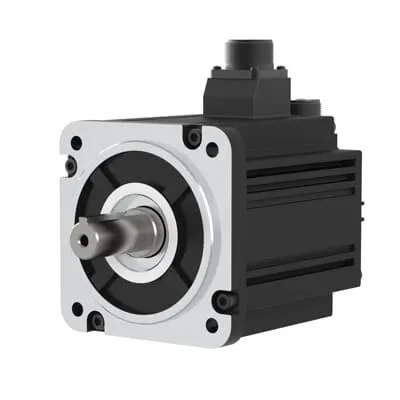

ABB 3AXD50001101633 DSM Servo Motor - 5 Pole-Pairs
Part Number: 3AXD50001101633
Quick Summary
ABB DSM servo motor is a high-performance LV AC servo motor designed for precise motion control in automated production lines. Engineers often wrestle with cogging, torque limits, and space constraints that hinder throughput. This model is designed with a 5 pole-pairs layout to minimize cogging torque while maintaining a compact footprint, and it pairs seamlessly with ABB drive ecosystems for reliable control. Designed to support CE safety standards, IP-rated enclosure options, and SIL-ready safety integration, it helps you meet stringent plant requirements. With brake, oil seal, and encoder-type options, the DSM motor offers flexible configurations that translate to reduced downtime and accelerated commissioning in machine automation projects.
Product Information
Extended Description
3AXD50001101633 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 5 pole-pairs design reduces cogging torque which leads to smoother, more predictable motion. Business Impact: Improves positioning accuracy and repeatability, boosting yield on high-precision tasks. Application: Ideal for packaging lines and CNC-driven equipment where mini-cogging translates to fewer defects. The ABB DSM motor supports 220 V operation and a 1.3 kW nominal power, enabling efficient performance across a range of speeds and loads. This results in energy savings and consistent torque delivery in continuous production environments. Feature: 8.34 N·m rated torque (Tn) provides strong start-up torque and reliable load handling. Business Impact: Higher peak performance with faster acceleration and reduced cycle times. Application: Suitable for pick-and-place and robotic subsystems within material handling. Feature: 2- and 3-axis compatibility with E530 servo drive families ensures streamlined integration, reducing commissioning time. Business Impact: Lower engineering effort and shorter time-to-startup, improving project ROI. Application: Fits ABB drive ecosystems for unified maintenance and diagnostics. Feature: Optional brake, oil seal, and encoder-type configurations offer tailored protection and feedback. Business Impact: Customizable protection for harsh environments and flexible feedback for precise tuning. Application: Essential for machines exposed to contaminants or demanding environments. Feature: Compact structure with high power density supports space-constrained installations. Business Impact: Enables sleeker machine layouts and easier retrofits. Application: Robotics, automation cells, and small-format machinery where form factor matters. These capabilities align with long-tail search terms like LV AC servo motor, servo drive compatibility, and 5-pole architecture, reinforcing reliability, efficiency, and cost-effectiveness across industrial motion control.
Get a Quick Quote for a ABB 3AXD50001101633
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001101633?
Enquire Now
FAQs
The DSM servo motor is designed to work with ABB E530 servo drives, enabling straightforward wiring, tuning, and parameter matching. Ensure supply is 220 V three-phase where applicable, and select encoder options compatible with the drive’s feedback interface. When pairing with E530, you can expect simplified commissioning, cohesive fault diagnostics, and consistent performance across speeds and loads.
You can expect robust torque provisioning at start-up with smooth acceleration and reduced cogging courtesy of the 5 pole-pair design. The 1.3 kW rating delivers strong end-of-travel performance in packaging and tooling applications, while the 8.34 N·m torque supports reliable handling of moderate loads. Speed ranges and control fidelity are enhanced when tuned within the E530 ecosystem.
Yes. The DSM servo motor’s compact footprint, high torque density, and compatibility with motion controllers make it well-suited for packaging machines, pick-and-place cells, and automated lines. The option of a brake and encoder configurations supports secure positioning and precise feedback, which are critical for high-volume packaging throughput and consistent quality.
While specific certification marks are not listed in the data, ABB servo motors in this class typically align with CE safety standards and support IP-rated enclosure options for harsh industrial environments. SIL-ready control integration is also a common consideration for safety-compliant deployments in automated systems.
Maintenance is streamlined by leveraging the ABB drive ecosystem, enabling centralized diagnostics and easier fault isolation. The option to choose encoder types and protective features reduces wear and downtime, boosting uptime and ROI. With efficient 1.3 kW operation and reliable torque, overall energy consumption and production capacity improve over the motor’s lifecycle.
