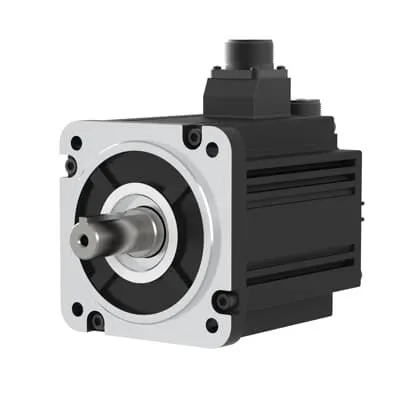

ABB 3AXD50001101640 LV AC Servo Motor - 5 pole-pairs design
Part Number: 3AXD50001101640
Quick Summary
ABB 3AXD50001101640 LV AC servo motor delivers precise positioning for automated machinery. Engineers often grapple with torque ripple and lengthy setup when integrating drives, and this motor provides smooth torque and faster commissioning. Common certifications that support safe, compliant installations include CE marking, IP-rated protection where applicable, and SIL considerations in integrated systems. With optional brake and encoder configurations, plus compatibility with the E530 drive, this motor reduces integration risk and boosts overall system efficiency. Designed for industrial environments, it supports easy serviceability and predictable replacement cycles, helping maintenance teams reduce downtime. By aligning with common control architectures and ABB's DSM family, the motor ensures scalable performance across multiple lines.
Product Information
Extended Description
3AXD50001101640 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature → Business Impact → Application: The 5 pole-pairs design yields a more compact motor body while delivering smoother torque and reduced cogging. Business impact: This translates to higher positioning accuracy, smoother motion profiles, and less vibration on high-speed axes. Application: Ideal for robotic pick-and-place, CNC axes, and packaging lines where tight tolerance and fast response matter. Feature → Business Impact → Application: The DSM motor delivers 1.3 kW of continuous power at 220 V, enabling robust performance from a compact device. Business impact: Operators benefit from predictable torque curves and improved energy efficiency in continuous running applications. Application: Suitable for conveyors, filling machines, and automated assembly that run at constant or variable speeds. Feature → Business Impact → Application: Compatibility with ABB E530 servo drive simplifies integration and reduces downtime during commissioning. Business impact: Fewer wiring errors and faster startup enable longer production windows and safer changeovers. Application: Widely used in automation cells across packaging, material handling, and machine tooling. Feature → Business Impact → Application: Optional brake, oil seal, and encoder variants provide flexible protection and feedback options. Business impact: Tailor the motor to challenging environments (dust, oil, moisture) and achieve precise incremental or absolute positioning. Application: Hazardous or high-speed lines, medical packaging, and robotics where stopping precision is critical. Feature → Business Impact → Application: The compact design with dense pole-pair architecture supports installation in tight spaces while maintaining high torque. Business impact: Allows more axes per cabinet and reduces mechanical footprint without sacrificing performance. Application: Small-format machinery, lab equipment, and automated grippers where space is at a premium. Feature → Business Impact → Application: DSM servo motor family alignment ensures consistent spare parts and maintenance planning, reducing total cost of ownership. Business impact: Lower training needs, easier stocking, and predictable service intervals. Application: Factory-floor upgrades and multi-line deployments where a common motor platform accelerates deployment.
Get a Quick Quote for a ABB 3AXD50001101640
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001101640?
Enquire Now
FAQs
Yes. The DSM servo motor is designed to work with ABB's E530 servo drive, enabling coordinated control of speed, torque, and position. Typical installation involves wiring the motor to the drive's servo feedback loop and selecting appropriate encoder type, velocity, and torque limits to match the application requirements.
Key specs include a 1.3 kW continuous power rating, 8.34 N·m peak torque, 220 V operating voltage, and a 5 pole-pair design. These attributes deliver precise positioning, reliable torque delivery, and compact form factor suitable for space-constrained automation tasks.
Best-suited applications include packaging lines needing fast response and accurate pick-and-place, robotic arms requiring repeatable motion, and CNC or automated tooling where tight tolerance and smooth torque are critical. The 5 pole-pair design and 220 V operation support compact installations with high dynamic performance.
For many ABB servo motors, CE conformity is standard, and IP-rated protection is common for industrial environments. SIL safety considerations may apply in integrated control systems. Always verify site-specific requirements and the motor’s exact certification package with your ABB distributor or system integrator.
ROI is driven by improved throughput, reduced cycle times, and lower downtime due to smooth torque and reliable drive integration. Maintenance generally focuses on monitoring encoder health, brake/oil-seal condition (if installed), and periodic spindle or bearing checks, aided by a common DSM motor platform for easier stocking and service planning.
