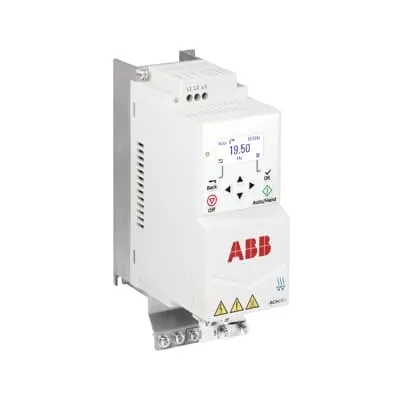

ABB 3AXD50001108977 Motors & Drives - HVACR UL 0.5 Hp
Part Number: 3AXD50001108977
Quick Summary
HVACR compact drive module is ABB’s LV AC drive that delivers precise speed control for HVAC applications. This solution addresses the common pain points of tight installation spaces and energy waste by offering a compact, easy-to-maintain drive. UL-listed safety with a 0.5 HP (2.4 A) rating at 230 V reinforces reliability, while CE documentation is available on request to support global deployments. The ACH180-based design prioritizes simple setup and safe maintenance, letting technicians focus on performance rather than drive complexity. When retrofitting or deploying new HVACR systems, this drive enables measurable energy savings, improved uptime, and straightforward integration with existing ABB controls and field instrumentation.
Product Information
Extended Description
3AXD50001108977 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature → Business Impact → Application: Compact HVACR drive module design saves enclosure space and simplifies retrofits, enabling installation in tight equipment cabinets and service enclosures. This reduces overall plant footprint and enables quicker project timelines for new HVACR installations or upgrades. Application: air handling units, rooftop units, and ventilation fans where space is at a premium. Feature → Energy-efficient motor control and soft-start capability improves running efficiency and reduces peak electrical demand, lowering energy costs and diminishing wear on motors. Application: large-scale cooling loops and fan arrays in data centers and process facilities. Feature → Safe, straightforward setup with clear parameterization and robust diagnostics minimizes commissioning time and outages. Application: field service and commissioning teams deploying HVACR drives in new builds or upgrades. Feature → Compatibility with ACH180 HVACR modules and 230 V single-phase supply supports easy integration with existing ABB-based control ecosystems. Application: retrofits and new equipment that require consistent ABB control philosophy and wiring practices. Feature → Compact footprint and modular design streamline installation in restricted spaces and allow future expansion. Application: retrofits in tight electrical cabinets or crowded equipment rooms across commercial buildings and industrial facilities.
Get a Quick Quote for a ABB 3AXD50001108977
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001108977?
Enquire Now
FAQs
Install the module in a suitable enclosure with adequate clearance, connect to a 230 V supply, and configure the ACH180-04S-02A4-1 parameters for a 0.37 kW/2.4 A load. Commission the drive with motor alignment, parameterization for HVAC fans or pumps, and perform a full functional test to verify safe startup and protection features.
Key specs include IEC rating of 0.37 kW (Pn) at 230 V with 2.4 A draw, and UL rating corresponding to a 0.5 HP capability at 230 V. It is designed as a LV AC micro drive module suitable for HVAC fans and pumps within commercial and industrial settings.
Yes. The ACH180 HVACR drive module is purpose-built for HVACR systems, delivering smooth speed control, energy efficiency, and reliable operation for fans, pumps, and air handling equipment in both retrofit and new-build scenarios.
The module carries UL listing for safety with a 0.5 HP/2.4 A/230 V capability. CE documentation is available on request. Specific IP or SIL ratings are not specified in the provided data, so verify regional compliance needs with ABB or your local distributor.
Benefits include energy savings from soft-start and optimized motor control, reduced mechanical wear, and a smaller footprint that lowers installation and maintenance costs. The drive supports quicker commissioning and longer-term reliability in demanding HVAC environments.
