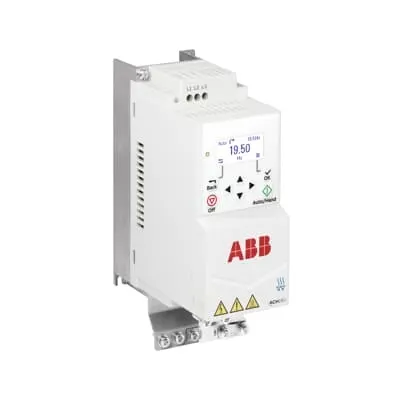

ABB 3AXD50001108991 LV AC micro drive - UL HVACR
Part Number: 3AXD50001108991
Quick Summary
ABB 3AXD50001108991 LV AC micro drive module enables precise speed control for HVACR systems in commercial buildings. Tight spaces, wiring complexity, and energy waste are common pain points when upgrading HVAC controls. UL-listed for safety and IEC HVACR standard compatibility support reliability and performance, while the compact footprint reduces panel space and installation time. For engineers and procurement teams, this drive module offers robust control with straightforward setup, enabling quick ROI and easier maintenance in modern HVAC installations.
Product Information
Extended Description
3AXD50001108991 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact design and compact footprint reduces cabinet size and enables easier retrofits. Business Impact: frees space in control panels, lowers enclosure costs, and simplifies installation in tight mechanical rooms. Application: ideal for rooftop units and air handling equipment where space is at a premium. Feature: Power and current specifications provide reliable motor control at 230 V. Business Impact: predictable performance with 0.55 kW (Pn) and 3.7 A (IEC); UL rating 0.75 Hp and 3.5 A ensures safe operation with HVAC motors. Application: fans, pumps, and blower drives in HVACR systems. Feature: User-friendly setup and safe maintenance workflow. Business Impact: reduces commissioning time and minimizes field service risk, improving uptime. Application: service-led installations where technicians value quick configuration and straightforward diagnostics. Feature: HVACR-focused functionality from the ACH180 family. Business Impact: energy savings and reliable operation for continuous HVAC demand; supports building energy management initiatives. Application: factory and commercial building HVAC control across chillers, AHUs, and rooftop units. Feature: Robust safety and standards alignment. Business Impact: UL-listed safety and IEC HVACR compatibility provide regulatory confidence and smoother approvals. Application: integration into compliant HVAC control architectures with reduced compliance overhead.
Get a Quick Quote for a ABB 3AXD50001108991
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001108991?
Enquire Now
FAQs
This module is designed for 230 V HVACR systems and delivers 0.55 kW of power with a 3.7 A current rating (IEC). It is compatible with the ACH180-04S-03A7-1 configuration and ABB ACH180 HVACR drives, enabling straightforward mounting in tight panels and standard motor control applications for fans and pumps.
Key specs include a 0.55 kW (Pn) rating, 3.7 A current at 230 V, and UL-listed performance with 0.75 Hp and 3.5 A. These figures align with typical HVACR motor control needs, ensuring reliable speed modulation for compact fans and pumps while fitting standard electrical cabinets.
Yes. The ACH180 HVACR module family is designed for HVAC applications, offering compact size, 230 V operation, and reliable motor control. It supports air handling equipment by delivering smooth speed control for fans and pumps, improving energy efficiency and reducing mechanical wear in AHUs and similar HVAC systems.
The module carries UL safety certification and adheres to IEC HVACR standards for electrical performance. These certifications provide regulatory confidence for installations in compliant HVAC control architectures, though specific CE or IP ratings are not listed in the provided data.
The 3AXD50001108991 drive module enables energy-efficient speed control, reducing running costs for fans and pumps. Its compact design simplifies installation, while safe, easy maintenance minimizes downtime and supports easier spare-part replacement within HVACR duty cycles.
