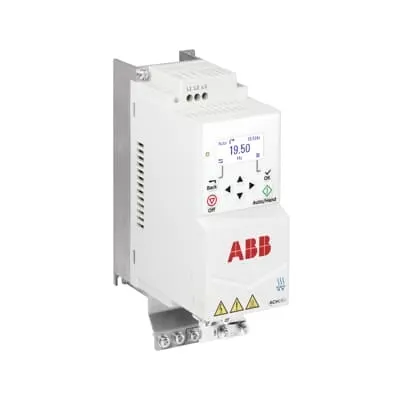

ABB 3AXD50001110055 LV AC micro drive module - 0.55 kW
Part Number: 3AXD50001110055
Quick Summary
The ABB 3AXD50001110055 LV AC micro drive module is designed for HVAC applications requiring compact, energy-efficient motor control. Tight space and complex wiring often slow commissioning and raise maintenance costs, but this module offers easy setup and a small footprint. In line with HVAC safety standards, it supports UL safety listings and industry-ready certifications, with IP-rated enclosure options for harsher environments. This combination delivers tangible business value by reducing energy consumption, speeding integration, and lowering total cost of ownership for OEMs and building operators. Its compatibility with the ACH180 HVACR compact drive family supports scalable deployments across commercial and industrial cooling and ventilation systems.
Product Information
Extended Description
3AXD50001110055 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact footprint enables tighter panel layouts and reduced enclosure size. Business Impact: Lower installation costs and simplified wiring paths. Application: Air handling units and packaged rooftop systems where space is at a premium. The result is faster commissioning and a more modular HVAC installation strategy. Feature: 0.55 kW power rating with 230 V supply (IEC Pn 0.55 kW, 3.7 A; UL: Pld 0.75 Hp, 3.5 A, 208 V). Business Impact: Reliable motor performance across common HVAC voltages, enabling consistent fan and pump control with reduced thermal stress. Application: Fans, pumps, and compressors in commercial HVAC systems. Feature: Simple setup and HVAC-focused parameterization. Business Impact: Shorter project timelines, lower commissioning labor, and easier maintenance. Application: Retrofit and new-build projects where technicians benefit from guided configuration. Feature: Robust safety and compatibility with the ACH180 HVACR family. Business Impact: Safer operation and scalable deployments across diverse HVAC equipment. Application: Compact drive integration in air handling units, rooftop units, and integrated HVAC systems. Feature: Energy efficiency and reliability in tight spaces. Business Impact: Lower energy bills and reduced total cost of ownership over the system life cycle. Application: OEM equipment and retrofit projects in commercial buildings and light industrial spaces.
Get a Quick Quote for a ABB 3AXD50001110055
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001110055?
Enquire Now
FAQs
This module is designed for 230 V HVAC power supplies and delivers 0.55 kW with a 3.7 A draw (IEC). It fits in compact panels and is compatible with the ACH180 HVACR family, simplifying wiring and easing duct/air handling unit integration. Ensure enclosure allows for thermal management and is wired for standard HVAC control signals to maximize reliability.
The device provides 0.55 kW of output power with 3.7 A at 230 V in IEC terms, and UL lists a 0.75 Hp rating at 208 V with 3.5 A. This makes the module suitable for both 208 V and 230 V supply configurations often found in commercial HVAC systems, enabling flexible deployment across sites.
Yes. Its compact footprint, 0.55 kW rating, and ease of setup make it well-suited for rooftop units where space is at a premium. The ACH180 HVACR family compatibility supports scalable integration in rooftop fans, compressors, and other HVAC equipment while maintaining reliable motor control and energy efficiency.
The module is UL-listed for safety, a critical credential for electrical equipment in building systems. In many deployments, regional builds pursue CE marking for market access. Note that exact IP rating depends on the enclosure used; selecting an appropriate enclosure will provide the intended environmental protection level.
Users typically realize energy savings from precise motor speed control and reduced mechanical wear, paired with faster commissioning due to straightforward setup. The compact design lowers panel costs and simplifies maintenance, contributing to a shorter payback period in both retrofit and new-build HVAC projects.
