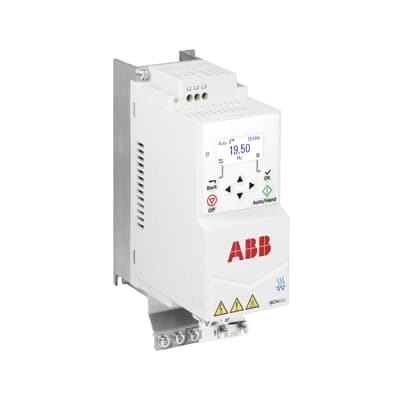

ABB 3AXD50001110079 LV AC Micro Drive - UL 1 HP
Part Number: 3AXD50001110079
Quick Summary
ABB 3AXD50001110079 LV AC micro drive module optimizes HVAC fan and pump control for energy-efficient systems. Installing compact drives without compromising reliability and serviceability is a common challenge in tight spaces. UL-listed for 1 HP at 208 V and 4.6 A, this HVACR drive module is designed to meet safety and performance needs. Its compact footprint and straightforward setup reduce commissioning time, while compatibility with ACH180-04S-04A8-2 ensures smooth integration with existing ABB controls. This combination supports reduced energy use and lower total cost of ownership.
Product Information
Extended Description
3AXD50001110079 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Power rating and current specifications set the foundation for reliable motor control. The ACH180 module delivers 0.75 kW nominal power with 4.8 A at 230 V, while the UL-listed equivalent for 208 V is 1 HP at 4.6 A. This combination ensures smooth starting, precise speed control, and consistent torque across HVAC loads. Compact physical footprint saves cabinet space and simplifies retrofits. The small drive module fits into crowded panels and shortens wiring runs, which lowers installation time and reduces heat buildup inside control enclosures. Built with HVACR safety in mind, the ACH180-04S-04A8-2 module is simple to set up and safe to maintain. Clear diagnostics and safe start/stop behavior minimize maintenance planning and downtime. Essential HVACR features target fan and pump motor loads, improving energy efficiency across operating profiles. In practice, variable-speed drive control reduces throttling losses and maintains consistent comfort while cutting energy consumption. Compatibility with the ACH180 family enables smooth integration with existing ABB controls and fieldbus options, simplifying commissioning and future upgrades. This approach addresses common objections about reliability in demanding environments, with robust construction and UL listing supporting compliance and long-term performance in building services.
Get a Quick Quote for a ABB 3AXD50001110079
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001110079?
Enquire Now
FAQs
For installation, mount the ACH180 module in a clean, ventilated control cabinet, connect the 230 V supply to the drive input, and wire the motor to the drive output according to ABB wiring diagrams. Use a dedicated run for control signals, enable safety interlocks, and configure basic acceleration/deceleration settings to match the HVAC load profile. Ensure proper airflow around the drive and observe manufacturer limits for ambient temperature and enclosure protection.
The drive provides a nominal 0.75 kW rating with 4.8 A at 230 V. The UL-listed 208 V equivalent supports 1 HP at 4.6 A. These ratings translate to reliable start-up torque and smooth speed control for HVAC loads, with stable operation across typical building voltage variations. Always verify the actual supply voltage in service before commissioning and adjust protection settings accordingly.
Yes. The ABB 3AXD50001110079 is designed for HVACR applications, delivering precise speed control for fans and pumps, improving energy efficiency, and maintaining comfort setpoints. Its compact form factor simplifies retrofits in existing cabinets, while UL certification supports safe operation in commercial environments. It scales with typical HVAC load profiles and supports reliable, long-term operation.
The drive is UL-listed for HVACR use, ensuring compliance with safety and performance guidelines critical to building services. UL certification reduces commissioning risk, supports maintenance planning, and helps satisfy regulatory and insurance requirements for HVAC installations. While CE and IP ratings are also commonly referenced, rely on UL status for HVAC-specific safety assurances in appropriate markets.
The drive can lower total cost of ownership by reducing energy consumption through precise variable-speed control, which minimizes throttling losses in fans and pumps. Its compact installation reduces cabinet space and wiring, cutting installation time and ongoing maintenance complexity. In the long run, fewer failures and simpler diagnostics translate to lower maintenance costs and improved system reliability.
