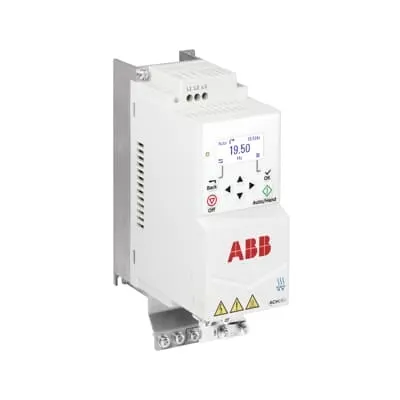

ABB 3AXD50001110093 LV AC micro drive module - UL Pld 0.75 Hp
Part Number: 3AXD50001110093
Quick Summary
3AXD50001110093 LV AC micro drive module for HVAC provides precise motor control for HVAC&R systems. Engineers often confront crowded equipment racks and tangled wiring when upgrading drives in retrofit projects. UL-listed safety with IEC-based sizing ensures reliable operation in HVAC environments. This compact, easy-to-install drive supports energy-efficient performance and straightforward maintenance, delivering measurable value for HVAC contractors and building operators alike.
Product Information
Extended Description
3AXD50001110093 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature → Business Impact → Application: The ACH180-04S-01A8-4 compact drive enables precise speed control at 0.55 kW IEC rating and 0.75 Hp UL rating, reducing energy consumption and optimizing fan and pump performance in HVACR systems. This directly translates to lower utility costs and extended motor life in commercial buildings where space is at a premium. Application-wise, the module fits tight control cabinets and simplifies integration with existing HVAC control networks, delivering reliable performance with minimal wiring complexity. A second feature is safe, easy setup and commissioning, which shortens project timelines and decreases commissioning risk for engineers. The drive’s compatibility with 400 V IEC and 460 V UL applications reduces the need for multiple SKUs, cutting procurement costs. A third benefit is robust HVACR operation in demanding environments, backed by ABB’s engineering standards, offering predictable maintenance intervals and improved ROI through reduced downtime. Long-tail keywords: LV AC drive for HVAC, HVACR motor control module, compact HVAC drive, energy-efficient HVAC drives, ABB ACH180, 3AXD5000 series.
Get a Quick Quote for a ABB 3AXD50001110093
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001110093?
Enquire Now
FAQs
When deploying the 3AXD50001110093 in HVAC systems, plan for a compact footprint in control cabinets, verify 400 V IEC or 460 V UL supply compatibility, and configure the drive using ABB’s setup guidance. Ensure proper wiring practices, adequate ventilation for drive heat dissipation, and alignment with HVAC control network protocols to minimize commissioning risk.
The IEC side specifies 0.55 kW, 1.8 A at 400 V, while the UL side lists 0.75 Hp, 1.6 A at 460 V for the ACH180-04S-01A8-4. This dual-spec arrangement supports flexible integration with both European-style and US/NA electrical distributions, enabling matched performance for fans and pumps in HVACR installations.
Yes. The device supports IEC 400 V configurations (0.55 kW, 1.8 A) and UL 460 V configurations (0.75 Hp, 1.6 A) via model ACH180-04S-01A8-4, enabling cross-regional deployment in commercial HVAC applications without requiring multiple drive SKUs.
The drive is UL-listed for safety, providing assurance for electrical enclosures and motor control usage. It follows IEC-based sizing conventions for HVACR equipment, ensuring compatibility with common European standards. If you require additional certifications for your facility, confirm regional compliance with ABB’s technical support before deployment.
Expected ROI comes from energy savings through optimized motor speed control, extended motor life due to reduced electrical and mechanical stress, and lower maintenance costs from improved reliability. The compact design reduces cabinet space and installation time, contributing to faster project payback and lower total cost of ownership in building automation projects.
