ABB 3AXD50001110949 Motors & Drives - 5 pole-pairs design
Part Number: 3AXD50001110949
Quick Summary
DSM servo motor is ABB's precise LV AC solution for automated production and packaging lines. It delivers high-performance motion control in a compact form for spaces-constrained machines. Operators often face cogging torque, motor sizing uncertainty, and drive-compatibility challenges, which this motor addresses with a 5 pole-pairs design and encoder options. Typical deployments prioritize safety and reliability, with CE compliance and IP-rated variants requested in many industries, while SIL-capable configurations are considered for critical processes. By integrating seamlessly with the E530 servo drive, it enables consistent performance, reduced downtime, and predictable maintenance costs. This combination delivers tangible business value through improved cycle times and lower operating expenses, while preserving equipment flexibility for future line upgrades.
Product Information
Extended Description

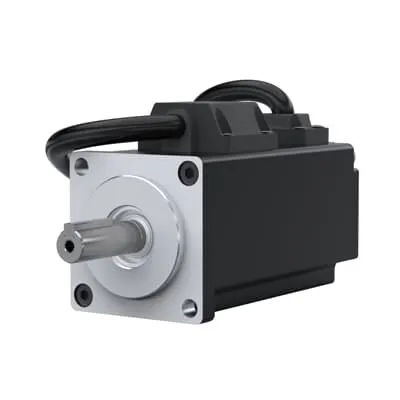

3AXD50001110949 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature → Business Impact → Application: The 5 pole-pairs design reduces cogging torque, enabling smoother motion at low speeds and improving positioning accuracy for precision tasks such as robotic pick-and-place and small-route conveyors. This translates to fewer rejects and longer life for mechanical assemblies. Application: packaging lines, Robotic cell integration.Feature → Business Impact → Application: Nominal power of 0.05 kW with 0.16 N·m torque at 220 V provides a lightweight yet capable drive for compact machinery, delivering energy-efficient operation in small automation projects. Application: laboratory automation, small CNC modules, packaging end-of-line stations.Feature → Business Impact → Application: Compatibility with the E530 servo drive reduces commissioning time and simplifies ABB automation stack integration, delivering faster time-to-value and easier maintenance. Application: retrofit projects, new line builds, multi-axis automation.Feature → Business Impact → Application: Brake, oil seal, and encoder-type options offer flexible customization for diverse environments, including dusty or hazardous areas, with improved reliability and predictable feedback. Application: conveyors, pick-and-place robots, precision feeders.Feature → Business Impact → Application: 5-pole design coupled with encoder options enhances feedback quality and reduces resonance, supporting tighter tolerances in robotics, material handling, and packaging workflows. Application: high-speed sorting, textile handling, automated labeling.
Get a Quick Quote for a ABB 3AXD50001110949
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001110949?
Enquire Now
FAQs
To install, mount the motor on a compatible coupling and motor bracket, connect the encoder feedback lead to the E530 drive's feedback terminals, and wire the 220 V power supply to the drive as per ABB installation guidelines. Ensure the brake and encoder options chosen match the application, perform a motor alignment procedure, and run a calibrated autotune for optimal gains. Verify mechanical clearances and ground integrity to minimize EMI.
Expect smooth, repeatable motion with reduced cogging torque due to the 5 pole-pairs design and 0.16 N·m torque at 0.05 kW, enabling precise positioning at moderate speeds. When paired with the E530 drive, combinational benefits include consistent acceleration, reduced vibration, and improved cycle times. The motor’s compact size helps fit tight packaging stations without sacrificing accuracy or reliability.
Yes. The 5 pole-pairs design inherently reduces cogging torque, which is critical for smooth trajectory tracking in robotics and pick-and-place tasks. Combined with encoder options for high-resolution feedback and E530 drive compatibility, it provides stable control across varying loads, improving repeatability and minimizing mechanical wear in robotic cells.
ABB servo motors are commonly deployed with CE compliance and configurable safety features, with IP-rated variants available for protected or harsh environments. For critical safety functions, SIL-capable configurations may be pursued within ABB’s safety portfolio. Always verify the exact certification set for the specific model option selected to ensure regulatory alignment with your application.
The 0.05 kW DSM motor delivers energy-efficient operation suitable for light-load automation, reducing energy costs and heat generation. Its compact form factor simplifies maintenance and spares inventory needs due to common ABB components. With reduced downtime from smoother motion and reliable drive integration, facilities typically realize shorter payback periods and higher overall equipment effectiveness (OEE).
