ABB DSM04L Servo Motor 3AXD50001110963 - 5 Pole-Pair
Part Number: 3AXD50001110963
Quick Summary
ABB DSM04L servo motor delivers precise motion control for automated manufacturing and packaging lines. Engineers often struggle with integration delays, cogging torque, and space constraints when retrofitting or expanding axes. While the data here does not specify explicit certifications for this model, ABB servo products are commonly CE-marked and designed for robust industrial environments; verify SIL safety standards where applicable. The motor’s 5 pole-pairs design and flexible encoder options enable compact drives with reduced cogging, while seamless compatibility with the E530 servo drive simplifies commissioning. Together, this combination supports higher throughput, lower downtime, and scalable automation across multiple production lines.
Product Information
Extended Description

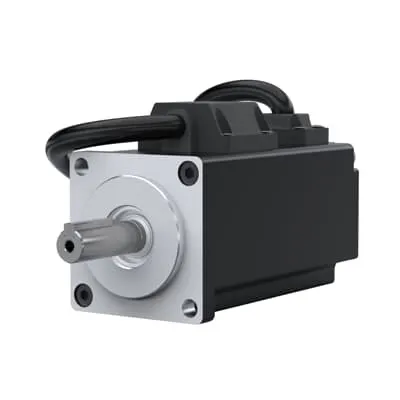

3AXD50001110963 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
0.05 kW nominal power with 0.16 N·m torque and a 5 pole-pair configuration create a compact servo motor for tight-axis applications. This power density reduces machine footprint and enables quicker servo response, improving cycle times in small-packaging and precision assembly tasks. Applications include packaging lines, robotic grippers, and CNC auxiliaries where space is at a premium. Seamless E530 drive compatibility lets you tune speed, torque, and position in a single control loop. This reduces wiring complexity, shortens commissioning times, and lowers maintenance costs through fewer interfaces. In mixed-tooling environments, it enables synchronized motion across multiple axes for consistent product quality. Configurable options including brake, oil seal, and encoder type improve reliability in harsh environments and during extended operation. The brake supports safe holding during power loss, the oil seal reduces ingress of dirt and oil, and encoder choices tailor feedback resolution to the application. These features translate to fewer spare parts and longer mean time between maintenance. Cogging torque is mitigated by the 5 pole-pair design, yielding smoother operation at low speeds. The result is improved positioning accuracy, repeatability, and reduced vibration in high-precision tasks. This makes the DSM04L ideal for delicate assembly, pick-and-place, and electronics manufacturing where precision matters. Overall, the DSM04L with E530 drive delivers a scalable, install-friendly automation solution. The compact form factor, flexible feedback options, and straightforward installation help lower total cost of ownership while supporting higher uptime and predictable performance across line changes.
Get a Quick Quote for a ABB 3AXD50001110963
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001110963?
Enquire Now
FAQs
Start by confirming 220 V power and wiring to the E530 per the installation guide, then mount the DSM04L on the chosen axis. Connect feedback encoder if required, and configure the drive with position, speed, and torque limits. Use ABB’s commissioning toolbox to synchronize multi-axis motion and verify safe torque off (STO) settings before production.
The 5 pole-pair configuration minimizes cogging torque, delivering smoother slow-speed operation and higher positioning accuracy. This improves repeatability in pick-and-place tasks and tight-tolerance packaging operations, enabling more consistent product quality and reduced vibration across industrial automation lines.
Yes. The DSM04L offers compact form factor, fast response, and flexible encoder options, making it well-suited for packaging axes, robotic gripping, and small tool don operations. When paired with the E530 drive, it supports synchronized multi-axis control, improving throughput while maintaining accurate positioning and gentle handling of delicate products.
Verify that the installation complies with CE marking requirements and any applicable IP-rating standards for your environment. If your application includes safety-critical operations, confirm SIL safety requirements with your risk assessment. Although the model data does not specify certifications, these are common in ABB automation solutions for industrial facilities.
The DSM04L with E530 drive reduces wiring complexity and commissioning time, lowering downtime during upgrades. Its configurable brake and seal options extend reliability in challenging environments, while encoder flexibility supports precise maintenance diagnostics. Over time, you can expect lower total cost of ownership through improved uptime, consistent product quality, and easier scale-up across production lines.
