ABB 3AXD50001110970 DSM Servo Motor - 5 Pole-Pair Design
Part Number: 3AXD50001110970
Quick Summary
ABB DSM servo motor is a high-performance LV AC drive motor for precise positioning in automated equipment. Engineers often grapple with cogging torque, space constraints, and selecting compatible brake, encoder, and oil seal options. Typical certifications for safety and environment include CE conformity for safety and EMC, IP-rated housings for harsh environments, and SIL-rated configurations for critical safety tasks. When paired with the E530 servo drive and optional accessories, this motor delivers reliable, scalable motion with lower maintenance and improved total cost of ownership. This combination supports streamlined installation, predictable uptime, and lower system risk across manufacturing lines.
Product Information
Extended Description

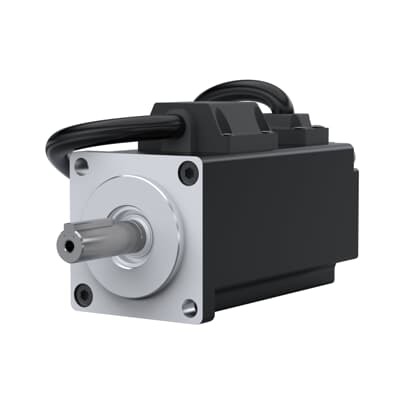

3AXD50001110970 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: The DSM motor uses a 5 pole-pair design for a more compact and rigid rotor. Business Impact: Reduces cogging torque and mechanical ripple, enabling repeatable positioning and higher throughput in closed-loop control. Application: Particularly beneficial on CNC axes, packaging lines, and precision conveyors where tight tolerance and smooth starts matter. Feature: Compatibility with the E530 servo drive simplifies tuning, reduces integration risk, and improves overall control performance. Application: Seamless pairing in ABB automation ecosystems, enabling quick commissioning and consistent performance across machines. Feature: Optional brake, oil seal, and encoder types allow customization to meet safety, environmental sealing, and feedback requirements. Application: Use in systems with strict stop-and-hold needs, oil-prone environments, or specific encoder interfaces. Feature: 0.1 kW nominal power at 220 V delivers a lightweight power envelope. Application: Ideal for small conveyors, compact robotic axes, and material handling tasks in constrained spaces. Feature: The high-performance design supports reliability and reduced maintenance over the lifecycle. Application: General automation across manufacturing lines where uptime and precision are critical.
Get a Quick Quote for a ABB 3AXD50001110970
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001110970?
Enquire Now
FAQs
The ABB DSM servo motor family, including the 3AXD50001110970 model, is designed to pair with the E530 servo drive for integrated motion control. Ensure the supply is 220 V, verify the 0.1 kW power rating and 0.32 N·m torque, and select encoder and brake options compatible with your application. This pairing simplifies tuning and reduces commissioning time while delivering reliable closed-loop performance.
A 5 pole-pair design reduces cogging torque, smoothing torque ripple at low and medium speeds. This leads to more predictable velocity profiles, better repeatability, and higher positioning accuracy in processes like CNC machining and precision packaging. The result is smoother starts and stops, improved servo control, and extended life for mechanical components due to reduced stress.
Yes. With a 0.1 kW rating and 220 V supply, the DSM servo motor delivers adequate torque for small conveyors and packaging line tasks while maintaining a compact footprint. Its compatibility with the E530 drive supports tight control loops and fast response times, enabling precise stops, gentle acceleration, and higher line throughput in space-constrained automation cells.
ABB servo motors typically support CE conformity for safety and EMC compliance and offer environments with IP-rated housings for protection against dust and water ingress. SIL-rated options are available for safety-related control tasks in risk-prioritized configurations. For specific certification levels on this model, confirm with ABB or the distributor to ensure alignment with your industry standards.
The DSM motor provides configurable options such as brake, oil seal, and encoder types, enabling tailored protection and feedback. This reduces downtime and maintenance needs in demanding environments. Coupled with the E530 drive, you gain efficient motion control, lower energy consumption, and improved uptime, contributing to a favorable total cost of ownership in automation projects.
