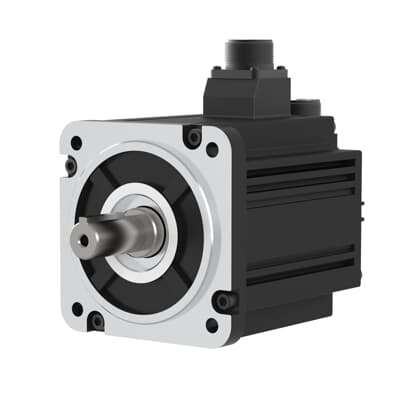

ABB 3AXD50001111397 LV AC Servo Motor - 5-Pole Design
Part Number: 3AXD50001111397
Quick Summary
ABB DSM servo motor is a high-performance LV AC servo motor for precise motion control in automation systems. Engineers often struggle with cogging torque, space constraints, and complex integration when upgrading legacy equipment. Critical certifications to verify for installations include CE compliance for European markets, safety-related SIL considerations for automation circuits, and appropriate IP ratings depending on the enclosure and environment. The DSM motor is designed to work with the E530 servo drive and offers adjustable brake, oil seal, and encoder options, delivering reliable performance with a compact footprint and predictable dynamic response for fast, repeatable positioning in manufacturing lines.
Product Information
Extended Description
3AXD50001111397 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 2 kW nominal power with 220 V operation; Business Impact: Delivers strong torque and smooth acceleration, enabling high-speed positioning with reduced cycle times; Application: Packaging, machine tools, and material handling where reliability and fast response are required. Feature: 5-pole-pair design; Business Impact: Significantly reduces cogging torque, improving smoothness and repeatability at low speeds; Application: Robotic pick-and-place and precision assembly. Feature: Compatibility with E530 servo drive; Business Impact: Simplifies system integration, preserves control architecture, and reduces commissioning time; Application: Retrofit projects and new lines that reuse existing drives. Feature: Brake, oil seal, and encoder options; Business Impact: Customizable sealing and braking configurations enhance protection and safety while enabling precise feedback; Application: Harsh environments and safety-critical applications. Feature: Compact mechanical design; Business Impact: Frees up cabinet space and eases installation in tight enclosures; Application: CNC modules and compact automation cells. Feature: Enhanced feedback with multiple encoder options; Business Impact: Improves tuning accuracy and control stability, reducing maintenance needs; Application: High-precision machining and robotics.
Get a Quick Quote for a ABB 3AXD50001111397
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001111397?
Enquire Now
FAQs
To install, ensure the E530 drive firmware is current and configured for the 2 kW, 220 V DSM motor. Connect motor leads according to the drive user manual, select the correct encoder feedback option, and enable the brake or oil seal accessory if required. Proper alignment, cable routing, and torque curve tuning are essential for optimum performance and reliable startup.
Key specs include 2 kW nominal power, 220 V operation, 9.55 N·m rated torque, and a 5-pole-pair design. It is designed to pair with the E530 servo drive for precise positioning and fast response. The motor supports configurable encoder types and optional brake and oil seal features to tailor performance to the application.
Yes. The 5-pole-pair design minimizes cogging and improves low-speed stability, which is beneficial for packaging and pick-and-place operations. With the E530 drive, you get accurate velocity and position control, plus options for encoders and braking to suit tight production tolerances and safety requirements in modern automation lines.
Verify CE compliance for European markets, and confirm any SIL safety requirements and IP protection levels relevant to your installation. Since configurations vary, work with your ABB supplier to ensure the chosen encoder, brake, and enclosure options meet your plant’s regulatory and safety standards.
The motor’s 5-pole design reduces cogging torque, improving repeatability and reducing defective parts from positioning errors. Flexible encoder options and brake/oil-seal configurations minimize downtime and protect against contamination or unexpected stops. Overall, compatibility with the E530 drive simplifies integration, lowers commissioning time, and can reduce total cost of ownership.
