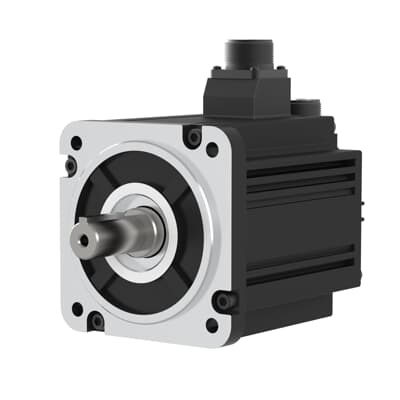

ABB 3AXD50001111489 DSM servo motor - 5 pole-pairs
Part Number: 3AXD50001111489
Quick Summary
ABB DSM servo motor delivers precise motion control for automated manufacturing and packaging lines. Engineers often wrestle with cogging, retrofit downtime, and drive-integration challenges, and this motor’s configurable options address those pain points. Note that certifications such as CE marking, IP ratings, and SIL capabilities are standard in this class; however, please verify these requirements with your supplier to ensure plant safety and regulatory alignment. The motor supports brake, oil seal, and encoder options, enabling flexible installation and 220 V operation at 1.3 kW. With E530 drive compatibility, it combines efficient performance with a lower total cost of ownership for high-volume automation.
Product Information
Extended Description
3AXD50001111489 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: High-performance LV AC servo motor delivering precise motion. Benefit: Improves repeatability and cycle accuracy on automated lines, reducing scrap and rework. Application: Packaging and assembly systems that demand tight speed and position control. Feature: Power and voltage specification of 1.3 kW at 220 V. Benefit: Adequate torque for medium-load applications with efficient electricity use, supporting compact cabinet designs. Application: Small to mid-size CNC and conveyor systems requiring reliable 220 V power. Feature: 5 pole-pairs design to reduce cogging torque. Benefit: Smoother startup and smoother motion profile, enabling higher throughput with less vibration. Application: High-precision pick-and-place and robotic transfer tasks. Feature: Optional brake, oil seal, and encoder configurations. Benefit: Flexible installation, enhanced protection in challenging environments, and customizable resolution to meet process requirements. Application: Environments with partial exposure to contaminants or where brake-assisted positioning is needed. Feature: Compatibility with E530 servo drive. Benefit: Quicker commissioning, simplified wiring, and coordinated control for synchronized axes. Application: Multi-axis automation cells that require seamless servo integration and reduced engineering time.
Get a Quick Quote for a ABB 3AXD50001111489
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001111489?
Enquire Now
FAQs
Begin with mounting the motor on a rigid base, connect the encoder and power wiring per the E530 installation guidelines, and configure the motor parameters in the drive. Ensure encoder resolution matches your application's accuracy needs, and verify brake or oil seal options if applicable. After wiring, perform a slow-speed alignment to confirm correct phase relationships and zero position before ramping to operating speed.
The motor is rated at 1.3 kW input power with a nominal torque of 8.34 N·m. It uses a 220 V supply and features a 5 pole-pair design. These specs support reliable, mid-load motion control and smooth operation in automation tasks when paired with a compatible servo drive like the E530.
Yes. The 5 pole-pairs design helps reduce cogging torque for smoother motion, improving repeatability in packaging lines. When combined with an E530 drive and appropriate encoder options, it enables tight speed and position control essential for high-throughput packaging applications.
Key certifications to verify typically include CE marking for electrical safety, IP ratings for ingress protection, and SIL capabilities for safety-critical applications. The provided data does not specify these, so confirm with the supplier or ABB to ensure your plant meets regulatory and safety requirements.
Expected ROI derives from increased uptime, reduced cycle times, and lower commissioning effort thanks to E530 drive compatibility and configurable options (brake, oil seal, encoder types). The motor’s efficient 1.3 kW rating, combined with reduced cogging and smoother motion, contributes to energy savings and improved process yield over the machinery’s life cycle.
