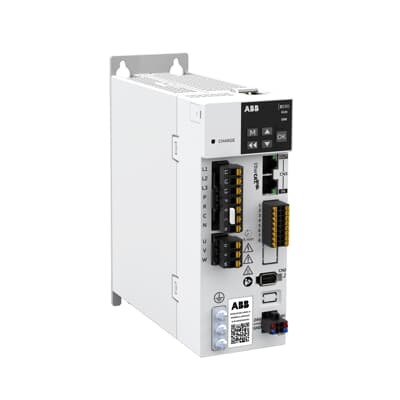

ABB 3AXD50001114770 LV AC Servo Drive - EtherCAT Protocol
Part Number: 3AXD50001114770
Quick Summary
ABB 3AXD50001114770 LV AC servo drive delivers precise motor control for automated machinery. Engineers often face integration headaches when combining legacy pulse-train systems with modern Ethernet-based controllers; this drive addresses that by offering two variants: E530-PT with pulse train input and Modbus TCP/IP, and E530-EC with EtherCAT. Designed for CE safety compliance and robust protection in industrial environments, it also supports IP-rated operation and SIL-ready safety integration pathways. With flexible connectivity and compact installation, it accelerates commissioning and reduces total cost of ownership for motion-control projects in manufacturing, packaging, and automation environments.
Product Information
Extended Description
3AXD50001114770 ABB: The E530 servo drive is a general-purpose servo drive. The drive has two variants, pulse train input (E530-PT) variant and EtherCAT (E530-EC) variant. The E530-PT servo drive supports the pulse train input, analog input and Modbus TCP/IP protocol, while the E530-EC servo drive supports the EtherCAT ptotocol. The flexible communication protocol ensures the connectivity between the drive and controller.
Feature: Dual communication variants—E530-PT supports pulse train input, analog input, and Modbus TCP/IP, while E530-EC provides EtherCAT connectivity. Business Impact: Enables seamless integration with a wide range of controllers and legacy systems, reducing wiring complexity and commissioning time. Application: Used across packaging lines and conveyors where both modern and legacy PLCs operate side-by-side. Feature: 1.5 kW power rating in a general-purpose drive. Business Impact: Delivers reliable torque and speed control for mid-sized machines, improving throughput and energy efficiency. Application: Suitable for mid-range machine tools and automated assembly cells. Feature: EtherCAT (EC) variant for high-speed synchronization. Business Impact: Enables deterministic, low-latency control across multi-axis systems, improving cycle times and repeatability. Application: Coexists with synchronized axes in packaging and material-handling systems. Feature: Pulse train input (PT) option for legacy compatibility. Business Impact: Lets legacy equipment continue to perform with modern controllers, protecting existing investments and reducing migration risk. Application: Ideal for retrofit projects on aging lines. Feature: ABB ecosystem compatibility and commissioning efficiency. Business Impact: Streamlined setup with familiar ABB tools and controller interfaces, lowering training costs and maintenance complexity. Application: Broadly applicable to automated manufacturing environments and machine upgrade programs.
