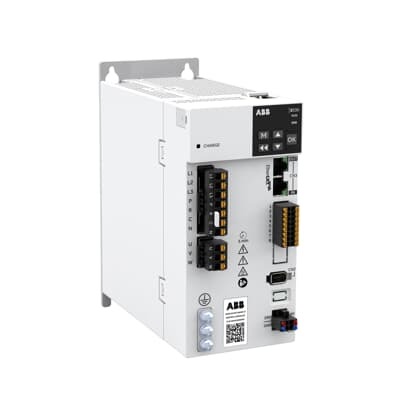

ABB 3AXD50001114794 Servo Drive - EtherCAT
Part Number: 3AXD50001114794
Quick Summary
ABB E530 servo drive enables precise motion control for general automation tasks in manufacturing. Integrators often face delays when connecting drives to controllers and choosing the right fieldbus, which can inflate project timelines and costs. Typical considerations include CE compliance for European markets, SIL safety integration to meet risk standards, and robust IP-rated enclosures to protect in harsh environments. This solution offers flexible communications and scalable performance, aligning with modern automation strategies while reducing integration effort. For OEMs and system integrators, the E530 delivers dependable motion control with adaptable connectivity, helping you shorten commissioning cycles and improve uptime across production lines.
Product Information
Extended Description
3AXD50001114794 ABB: The E530 servo drive is a general-purpose servo drive. The drive has two variants, pulse train input (E530-PT) variant and EtherCAT (E530-EC) variant. The E530-PT servo drive supports the pulse train input, analog input and Modbus TCP/IP protocol, while the E530-EC servo drive supports the EtherCAT ptotocol. The flexible communication protocol ensures the connectivity between the drive and controller.
Feature: Two variant options E530-PT and E530-EC provide flexible communications. Business Impact: Enables seamless integration with legacy pulse-train systems or high-speed EtherCAT networks, cutting wiring complexity and commissioning time. Application: Use on multi-axis machines requiring either traditional control or modern Ethernet-based control. The result is faster time-to-production and reduced installation costs. Feature: Pulse train input, analog input, and Modbus TCP/IP support. Business Impact: Broad controller compatibility and easy interfacing with existing PLCs, reducing rework and risk during migration. Application: Ideal for packaging, machining, and simple robotics where diverse fieldbus support is needed. Feature: EtherCAT capability in the E530-EC variant. Business Impact: Deterministic high-speed communication for synchronized motor control, increasing throughput and precision. Application: High-performance CNC tooling or automated assembly lines where tight coordination is critical. Feature: 4 kW power rating (Pn 4 kW). Business Impact: Suitable for compact to mid-size servo motors, delivering robust torque with energy efficiency. Application: Material handling, robotics, and process automation. Feature: Installation compatibility and flexible architecture. Business Impact: Supports scalable configurations with minimal wiring, enabling easier upgrades and maintenance. Application: OEM assemblies and retrofit projects where future expansion is anticipated.
Get a Quick Quote for a ABB 3AXD50001114794
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001114794?
Enquire Now
FAQs
The E530 supports two variants: E530-PT for pulse train and analog inputs with Modbus TCP/IP, and E530-EC for EtherCAT networking. For EtherCAT, connect to a compatible EC-capable controller and configure the slave via the controller's configuration tool; for PT, ensure the pulse train and analog signals meet the drive's input specifications and map Modbus TCP/IP as needed. This dual-path approach reduces integration risk when upgrading legacy systems or expanding to Ethernet-based control.
The E530 is designed for general-purpose motion with a 4 kW nominal power rating, suitable for mid-size servo motors. It supports precise speed, position, and torque control, with configurable control loops and feedback. In EtherCAT mode, expect high-speed, deterministic communication for synchronized multi-axis operation, which improves throughput and repeatability in complex automation tasks.
Yes. The E530's dual communication options and 4 kW power rating make it well-suited for packaging lines, robotics, machine tools, and small CNC or automation tasks. EtherCAT enables tight coordination across axes for synchronized motion, while PT mode supports legacy or simpler systems. This combination supports scalable solutions from retrofit projects to new machine builds.
Key certifications to verify for your application include CE compliance for European markets and appropriate safety certifications, including SIL-related requirements for safety-integrated systems. IP ratings appropriate to your enclosure environment should also be confirmed. Always validate the specific drive variant (PT or EC) against your machine safety and environmental standards before procurement.
The E530 reduces commissioning time with flexible fieldbus options and straightforward wiring, lowering upfront engineering costs. Long-term, modular architecture and compatibility with standard ABB servo motors simplify spare parts management and upgrades, improving uptime and reducing total cost of ownership. Remote diagnostics and common industrial protocols further support predictable maintenance and faster issue resolution.
