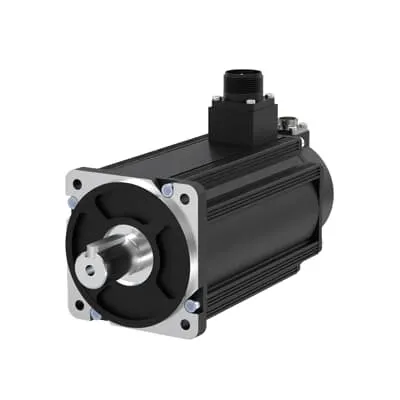

ABB 3AXD50001122799 Servo Motor - 5 Pole-Pairs
Part Number: 3AXD50001122799
Quick Summary
ABB 3AXD50001122799 Servo Motor is a high-performance LV AC servo motor for precise motion control in automation. Engineers often struggle with cogging torque, encoder compatibility, and seamless drive integration across existing lines. This design supports multiple encoder options and configurable brake or oil seal accessories, while pairing with the E530 drive to meet CE and IP-ready safety expectations. In practice, customers gain improved positioning accuracy and reduced cycle times, driving better throughput and lower total cost of ownership. Additionally, the 5 pole-pairs configuration reduces cogging and fosters smoother operation under varying load, supporting scalable automation strategies.
Product Information
Extended Description
3AXD50001122799 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: Nominal power Pn 1 kW and voltage 380 V three-phase AC. Business impact: reliable, predictable torque delivery for mid-range workloads, enabling consistent cycle times and energy-efficient operation. Application: packaging lines, conveyors, and small machine tools requiring precise motion. Feature: 5 pole-pairs design reduces cogging torque for smoother motion and higher positioning accuracy under partial loads. Business impact: improved rapids and repeatability, lower error rates, and better control in high-speed operations. Application: robotic pick-and-place, CNC tooling, and material handling. Feature: Encoder options with configurable brake or oil seal configurations. Business impact: enhanced feedback fidelity, protective sealing, and safety interlocks, reducing downtime and maintenance costs. Application: harsh or clean environments requiring reliable sealing and safe stops. Feature: Drive compatibility with E530 servo drive. Business impact: simplified commissioning, unified control loops, and reduced integration risk across ABB drive systems. Application: integrated automation architectures in packaging, textile, and food & beverage lines. Feature: Compact yet robust design with 380 V supply compatibility. Business impact: easier installation in tight spaces, reduced wiring complexity, and scalable automation expansion. Application: retrofits and new installations in existing machinery.
Get a Quick Quote for a ABB 3AXD50001122799
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001122799?
Enquire Now
FAQs
Typical installation involves a three-phase 380 V AC supply, motor-to-drive interface, and encoder feedback wiring. Plan for proper cable routing, shielding, and safety interlocks. After mounting, tune the E530 parameters for the motor’s torque curve to achieve smooth start/stop and accurate position control, ensuring correct brake behavior if configured.
The motor has a nominal power of 1 kW and operates at 380 V AC with 3-phase input, delivering 3.18 N·m of nominal torque. This combination supports reliable medium-load motion with good speed range. Performance depends on drive tuning and encoder feedback quality, which influence positioning accuracy, repeatability, and response under dynamic loads.
Yes. Designed for precise motion control, it integrates with the E530 drive and offers encoder options and protective configurations suitable for packaging, CNC, robotics, and material handling. The 5 pole-pairs design reduces cogging, improving smoothness at high speeds, which is beneficial for high-throughput packaging lines and robotic pick-and-place tasks.
The motor supports CE electrical safety compliance and offers IP-rated variants and SIL-ready options depending on configuration. This ensures regulatory alignment for industries with strict hygiene, dust, humidity, or safety requirements, while enabling safer operation and easier validation during audits and commissioning.
ROI improves through higher throughput, reduced cycle times, and lower downtime from smoother motion and reliable feedback. Maintenance benefits come from configurable protection options like brakes and seals, along with compatibility with standard ABB drives, which simplifies spare parts planning and service workflows, ultimately reducing total cost of ownership over the motor’s life cycle.
