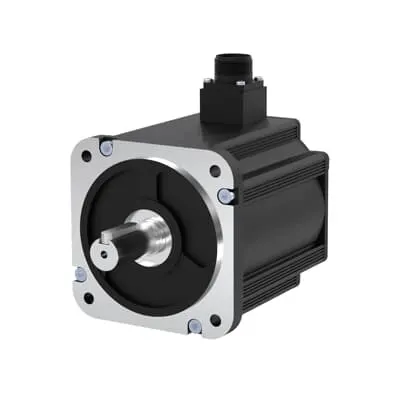

ABB DSM13H-1KW3-154-T0NA0 Servo Motor - 5 Pole-Pair Design
Part Number: 3AXD50001122911
Quick Summary
ABB DSM13H-1KW3-154-T0NA0 servo motor is a high-performance LV AC servo solution for precise motion control in automated equipment. Engineers often face cogging, tuning challenges, and lengthy commissioning when integrating new motors with existing drives. This model commonly aligns with CE safety compliance and offers options for IP-rated protection and SIL-ready safety integration to meet rigorous industrial requirements. With compatibility to ABB’s E530 servo drive and flexible encoder options, it delivers reliable performance, streamlined maintenance, and lower total cost of ownership in demanding production environments.
Product Information
Extended Description
3AXD50001122911 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
The 5 pole-pair design reduces cogging torque, delivering smoother motion and higher positioning accuracy essential for high-speed packaging and CNC tooling. This directly translates to fewer jog corrections, tighter tolerances, and better repeatability in automated assembly lines. The 380 V LV AC supply paired with a 1.3 kW nominal power rating provides strong torque at standard plant voltages, improving throughput on conveyors and pick-and-place systems. When paired with ABB’s E530 servo drive, installation is simplified through cohesive software and drive integration, reducing commissioning time and risk. Brake, oil seal, and encoder type options enable safer stop sequences in conveyors, water/dust-prone environments, and machines that require heavy-duty sealing. The compact design supports retrofits and space-constrained layouts, while encoder variability supports various feedback schemes for precise control in complex motion profiles. Industry users gain predictable performance, accelerated time-to-value, and lower maintenance costs thanks to modular options and robust ABB support.
Get a Quick Quote for a ABB 3AXD50001122911
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001122911?
Enquire Now
FAQs
This servo motor is designed to integrate with ABB’s E530 servo drive ecosystem, streamlining wiring, parameter transfer, and tuning. For best results, ensure the drive is configured for a 380 V LV AC servo motor, set the correct encoder feedback type, and align torque constants in the drive’s motor data. Confirmation of connector types and fieldbus options should be verified during the hardware-in-the-loop commissioning phase.
Key specs include a nominal power of 1.3 kW, rated torque of 8.34 N·m, a 380 V supply, and a 5-pole-pair design. The model is suitable for precise positioning and high-speed applications, with encoder options and compatibility with safety features. These parameters support tight torque control and repeatable motion across automated lines and tooling.
Yes. The 5 pole-pair design reduces cogging torque, improving smoothness during high-speed start/stop cycles typical in packaging. When used with precise feedback (encoders) and tuned via the E530 drive, it delivers repeatable positioning, reliable cycle times, and minimized quality variance, all of which are critical for high-precision packaging operations.
ABB servo motors commonly support CE safety compliance and offer options with IP-rated protection for harsh environments. SIL-ready safety integration is also often available for applications requiring safety instrumented system alignment. When selecting options, verify specific enclosure ratings and safety features with your ABB distributor to match your regulatory needs.
Expect ROI from improved throughput, reduced downtime, and easier maintenance due to drive compatibility and modular options. Regular maintenance should focus on encoder integrity, brake operation if equipped, and drive parameter refresh during annual service. The motor’s compatibility with the E530 drive simplifies spare parts management and ongoing performance optimization.
