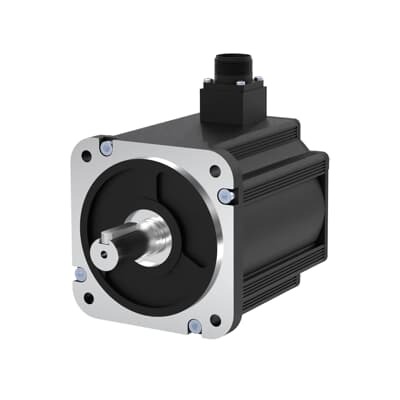

ABB DSM13H-1KW3-154-T0BB0 Servo Motor - 5 pole-pair design
Part Number: 3AXD50001122942
Quick Summary
The ABB DSM13H-1KW3-154-T0BB0 servo motor is a high-performance LV AC motor designed for precision motion control in automation systems. Engineers often face challenges with cogging, torque limits, and integration friction when upgrading drives, and this model’s 5 pole-pair design helps deliver smoother, more repeatable motion. Typical certifications for ABB motor systems include CE compliance, with optional SIL configurations and protective IP ratings depending on the installed options. Compatibility with ABB E530 servo drives enables streamlined installation and predictable control loops. Flexible configurations—such as brake, oil seal, and encoder type choices—support a wide range of applications, from robotics to packaging lines, delivering tangible lifecycle value for modern manufacturing environments.
Product Information
Extended Description
3AXD50001122942 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 1.3 kW LV AC servo motor with 380 V supply and 8.34 N·m rated torque. Business Impact: Delivers high torque density and fast response for precise motion control, reducing cycle times and improving positioning accuracy. Application: Ideal for compact robotics, CNC modules, and pick-and-place lines where space is limited and repeatable torque matters. Feature: Compatibility with the E530 servo drive. Business Impact: Simplifies commissioning, tuning, and maintenance, enabling quicker probability of first-run success and lower engineering effort. Application: Suitable for integrated automation cells and single-encoder feedback systems in packaging and conveying lines. Feature: Optional brake, oil seal, and encoder types. Business Impact: Provides configurable protection and environmental resilience, reducing downtime and retrofit costs. Application: Useful in wet or dirty environments, or when precise brake-controlled stops are required in material handling. Feature: 5 pole-pair design. Business Impact: Reduces cogging torque for smoother motion and higher stability at low speeds, improving trajectory accuracy. Application: Beneficial for precision milling, robotic arms, and servo-controlled tightening operations. Feature: Compact motor architecture. Business Impact: Frees cabinet space and eases installation in retrofit projects or constrained facilities. Application: Retrofit projects in machine retrofits, assembly lines, and compact automation cells. This motor supports long-term reliability and predictable performance in industrial automation contexts, with long-term value through efficiency gains, reduced maintenance, and optimized throughput.
Get a Quick Quote for a ABB 3AXD50001122942
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001122942?
Enquire Now
FAQs
For installation, mount the motor to a compatible coupling or adapter, connect the 380 V power supply per factory wiring diagrams, and integrate with the E530 servo drive using the recommended feedback and encoder configuration. Verify torque, speed, and thermal limits in the drive software, then run a cautious startup sequence to confirm smooth commutation and accurate positioning.
Key specs include 1.3 kW nominal power, 8.34 N·m rated torque, 380 V AC supply, and a 5 pole-pair design. This combination supports high-precision motion with reduced cogging and strong dynamic response when paired with the E530 servo drive, making it suitable for demanding automation tasks.
Yes. The motor’s high torque density, smooth torque due to the 5 pole-pair design, and E530 drive compatibility make it well-suited for packaging and pick-and-place operations. Its configurable encoder and brake options support accurate stop-positioning and safe handling of products on fast-moving lines.
While the model data notes do not list specific certifications, ABB servo motors commonly support CE compliance, with potential SIL-rated configurations and IP-rated protection available depending on options chosen. Always confirm the exact certification package with the supplier based on your regional regulatory requirements.
The DSM13H-1KW3-154-T0BB0 is designed for reliability in continuous motion with options like brake and oil seal to protect against environmental ingress. When paired with the E530 drive, you can expect reduced downtime, lower maintenance overhead, and a faster return on investment due to improved throughput and positioning accuracy.
