ABB 3AXD50001122959 DSM Servo Motor - 5 Pole-Pairs Design
Part Number: 3AXD50001122959
Quick Summary
The ABB DSM servo motor delivers precise, high-performance motion control for automated production lines. Engineers often confront torque ripple, encoder compatibility, and integration hurdles when upgrading legacy systems. In practice, important certifications and standards to verify include CE marking for Europe, IP ratings for enclosure protection, and applicable SIL safety requirements where required. This model also benefits from a flexible options set—brake, oil seal, and encoder configurations—and compatibility with the E530 servo drive. The result is smoother commissioning, reduced downtime, and predictable performance across varying loads. Pairing this motor with 380 V systems supports scalable solutions for industrial automation demands.
Product Information
Extended Description

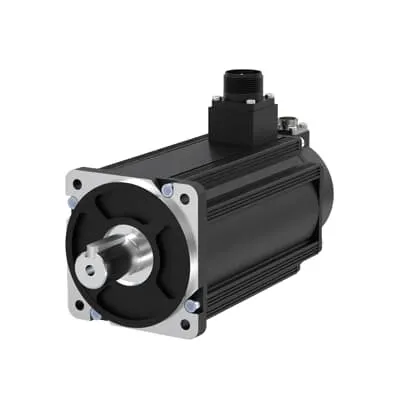

3AXD50001122959 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
5 pole-pairs design reduces cogging torque, enabling smoother starts and higher-precision positioning under varying loads. Business impact: improved cycle consistency, fewer missed steps, and higher overall equipment effectiveness in packaging, robotics, and CNC applications. Application: packaging lines and pick-and-place robots benefit from steadier trajectories and reduced vibration. Flexible option set including brake, oil seal, and encoder configurations provides tailored protection and feedback. Business impact: enhanced reliability in harsh environments, extended motor life, and easier retrofit in existing lines. Application: conveyor systems, tools with aggressive contamination, and automated inspection cells gain durability and accurate feedback. Compatibility with the E530 servo drive simplifies integration and commissioning. Business impact: shorter setup times, streamlined diagnostics, and unified maintenance practices. Application: retrofit projects and new line builds where a proven drive ecosystem accelerates time-to-value. Low-voltage 1.5 kW power with 380 V supply enables efficient control of mid-range loads. Business impact: balanced performance and energy efficiency, reducing total cost of ownership. Application: spindle drives, small to mid-size robotics, and motion-control subsystems. Encoder options and scalable feedback options support precise positioning and system tuning. Business impact: improved accuracy, repeatability, and control-loop optimization across multiple axes. Application: robotics, CNC, and packaging where tight tolerances matter. Brake integration and oil-seal options address safety and environmental protection. Business impact: compliant risk mitigation, safer stopping sequences, and protection against ingress. Application: conveyors, lifting devices, and machinery operating in damp or dusty environments.
Get a Quick Quote for a ABB 3AXD50001122959
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001122959?
Enquire Now
FAQs
Use the E530 drive as the coordinated controller for this LV AC servo motor. Ensure supply is 380 V AC, select the encoder feedback type that matches your control loop, and configure the drive parameters for a 1.5 kW, 4.9 Nm motor with the 5-pole-pair design. Verify brake and oil seal options if your environment requires them, and perform a steady-state alignment using the drive’s commissioning routine for smooth torque transfer and accurate position tracking.
The motor is rated for 1.5 kW with a nominal torque of 4.9 Nm at 380 V. Performance under load depends on the drive command and feedback resolution; leveraging the 5-pole-pair design reduces cogging and improves smoothness at mid-to-high speeds. For most applications, stability is enhanced when paired with appropriate encoder options and tuned control loops in the E530.
Yes. The DSM servo motor’s 1.5 kW rating, 4.9 Nm torque, and 5-pole-pair design deliver precise, repeatable motion ideal for packaging, pick-and-place, and robotic cells. The motor’s flexibility with encoder options and brake/or oil-seal configurations supports varied packaging speeds, precise pick cycles, and reliable operation in busy automation environments.
Typical regulatory considerations include CE marking for European conformity and appropriate IP ratings for enclosure protection. Depending on your application and region, SIL safety considerations may be relevant. Always confirm current certifications with ABB documentation and ensure your system design meets local standards before deployment.
Flexibility in brake and oil-seal options supports protective sealing and safe stopping sequences, reducing unplanned downtime. The motor’s robust LV AC design, compatible with the E530 drive, enables efficient control, longer service life, and lower maintenance overhead through fewer drive faults and easier diagnostics, delivering faster return on investment in mid-range automation projects.
