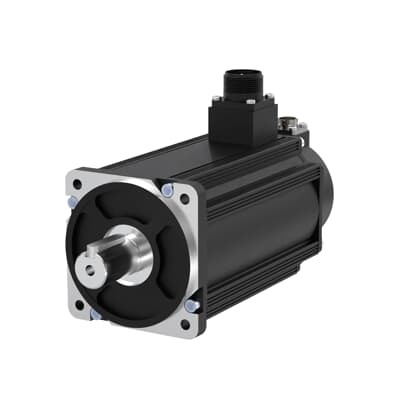

ABB 3AXD50001122973 DSM Servo Motor - 5 Pole Design
Part Number: 3AXD50001122973
Quick Summary
The DSM servo motor from ABB provides precise drive control for robotic arms and CNC applications. Engineers often wrestle with cogging torque, installation complexity, and limited motor flexibility. Certification details vary by configuration; ABB servo solutions are typically CE-compliant and offered with protective IP ratings depending on housing and options. By selecting brake, oil seal, or encoder options, users tailor performance for harsh environments and long service life. Coupled with ABB's E530 drive, this motor enables reliable motion control across automated packaging, material handling, and manufacturing lines. This combination supports reduced downtime and improved throughput in demanding production environments, benefiting organizations pursuing high-availability automation in industrial automation settings.
Product Information
Extended Description
3AXD50001122973 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Power and performance drive value: The DSM servo motor delivers Pn 1.5 kW with a nominal torque of 4.9 N·m at 380 V, enabling robust acceleration and precise positioning in compact form. Business impact: higher throughput with faster cycle times, and reduced space requirements thanks to a 5 pole-pairs design that minimizes cogging torque. Application: ideal for tool changers, packaging lines, and servo-controlled conveyors where space is at a premium. Drive compatibility: This motor is designed to work seamlessly with the E530 servo drive, simplifying control algorithms and tuning. Impact: easier commissioning, tighter synchronization, and consistent repeatability across multiple axes. Applications: robotics, CNC machines, and automated assembly. Customization options: The DSM offers brake, oil seal, and encoder-type options, giving flexibility to match environmental conditions and control requirements. Impact: improved reliability in dusty or oily sectors, and reduced integration time when selecting encoders. Applications: heavy-duty handling, food processing, and pharmaceutical packaging with strict cleanliness. Mechanical design: A 5 pole-pairs configuration yields a compact, rigid assembly and reduced cogging torque, enhancing smooth motion. Impact: smoother trajectories, lower vibration, and longer tool life. Applications: precise pick-and-place and high-precision machining. Installation and lifecycle: The 380 V LV AC motor is a common industrial standard, enabling straightforward electrical integration and spare part sourcing. Impact: lower installation risk, faster maintenance planning, and cost-effective operation across manufacturing lines. Applications: general factory automation and OEM equipment.
Get a Quick Quote for a ABB 3AXD50001122973
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001122973?
Enquire Now
FAQs
Ensure a proper 380 V power supply, match encoder type to the drive, and configure the E530 for the motor's 1.5 kW power and 4.9 N·m torque. Use the motor's brake and oil seal options if the environment demands enhanced reliability; follow ABB installation guidelines and consult the datasheet for wiring diagrams and safety clearances.
Nominal power is 1.5 kW with a nominal torque of 4.9 N·m at 380 V. The motor employs a 5-pole-pairs design, optimized for reduced cogging torque and smoother motion, making it well-suited for high-precision applications when paired with the E530 drive.
Yes. The 1.5 kW / 4.9 N·m rating, 380 V operation, and 5-pole design deliver precise, repeatable motion ideal for packaging lines, pick-and-place tasks, and conveyor control when integrated with the E530 servo drive and appropriate encoders.
Certification details vary by configuration. ABB servo motors commonly support CE marking and configurable IP-rated housings; verify the exact configuration and documentation for your application to confirm available certifications and environmental ratings.
Expect improved throughput from faster, smoother motion and reduced downtime due to lower cogging torque and reliable auto-tuning with the E530 drive. Maintenance is minimized by configurable options such as brake, oil seal, and encoder types, which extend motor life in demanding environments.
