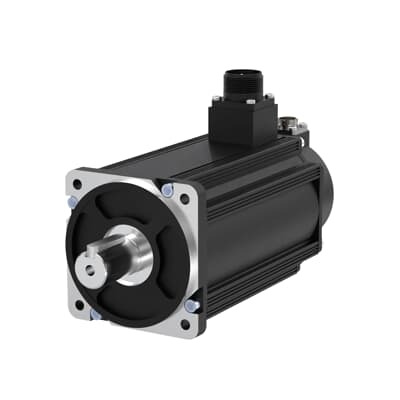

ABB 3AXD50001123062 Servo Motor - 5-Pole, 2 kW, 380 V
Part Number: 3AXD50001123062
Quick Summary
ABB servo motor DSM delivers precise motion control for LV AC drives in automated manufacturing. This servo motor is designed to address downtime and torque ripple issues on high-speed lines by offering brake, oil seal, and encoder options to tailor performance. In typical deployments, CE compliance, IP ratings, and SIL-ready safety configurations are important considerations to meet industrial standards. When paired with the E530 servo drive, it enables smooth, efficient motion; its compact 5-pole design reduces cogging torque and overall machine footprint, delivering reliable performance and optimized total cost of ownership. The DSM integrates well with modern control systems, improving system-level efficiency and maintenance planning.
Product Information
Extended Description
3AXD50001123062 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 2 kW power rating and 380 V LV AC operation → Business impact: supports robust torque and reliable performance in mid-range automation applications, reducing motor stalls and improving throughput. Application: packaging lines and CNC tooling where precise speed control is critical. Feature: 5 pole-pairs design → Business impact: lowers cogging torque for smoother startup and higher-speed response, enabling tighter motion control and reduced mechanical wear. Application: high-precision pick-and-place and robotic arms. Feature: brake, oil seal, and encoder options → Business impact: tailors protective features and feedback accuracy to environment and safety requirements, cutting downtime and maintenance costs. Application: hazardous or dirty environments and safety-critical processes. Feature: E530 drive compatibility → Business impact: seamless integration with existing ABB control ecosystems, simplifying commissioning and system diagnostics. Application: multi-axis synchronized motion where quick tuning and reliability matter. Feature: compact form factor and integration with DSM10L-2KW0-304-T0BB0 → Business impact: saves panel space and reduces cabinet footprint, lowering installation and wiring complexity. Application: compact automation cells and retrofit projects.
Get a Quick Quote for a ABB 3AXD50001123062
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123062?
Enquire Now
FAQs
For best results, verify electrical compatibility (380 V supply, 2 kW rating) and configure the encoder feedback to match the E530 settings. Use brake and encoder option selections to meet safety and performance needs, and follow ABB wiring diagrams to minimize signal interference and achieve stable torque performance.
Key specs include power rating of 2 kW, torque of 6.36 N·m, 380 V operating voltage, and a 5 pole-pair design. The motor is designed to work with the E530 servo drive and offers brake, oil seal, and encoder type options to tailor performance and protection in demanding environments.
Yes. The 2 kW, 6.36 N·m rating, combined with the 5 pole-pair design and E530 drive compatibility, provides precise velocity and torque control ideal for packaging, pick-and-place, and CNC applications. The option for brake and encoder configurations supports customized stop accuracy and reliability in high-speed operations.
In typical industrial deployments, CE compliance, IP-rated variants, and SIL-ready safety configurations are important considerations. Always verify the exact product datasheet for certified approvals and ensure the specific configuration (brake, encoder, seals) meets your regional safety and regulatory requirements.
Maintenance overhead is reduced by protective features such as the oil seal and by selecting encoder options that improve reliability and diagnostic visibility. The integration with the E530 drive enables tighter control loops and predictive maintenance opportunities, which can shorten changeover times and lower total cost of ownership over the machine life.
