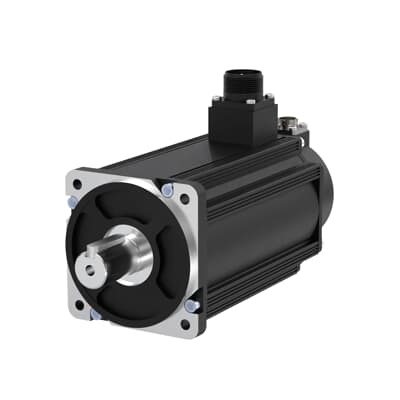

ABB 3AXD50001123086 LV AC Servo Motor - 5 Pole-Pair Design
Part Number: 3AXD50001123086
Quick Summary
ABB 3AXD50001123086 LV AC servo motor provides precise motion control for automated production lines and packaging systems. This servo motor delivers reliable torque and repeatability essential for high-volume manufacturing while reducing cycle times. Engineers often grapple with cogging, integration gaps with existing drives, and inconsistent holding torque when upgrading to new motion systems. The DSM design supports a range of options including brake, oil seal, and encoder types, enabling flexible configurations for different environments. By pairing with the E530 servo drive, it can optimize speed response and energy efficiency across 380 V systems, while maintaining compact packaging. CE compliance and optional IP-rated variants help meet safety and enclosure requirements, contributing to lower lifecycle costs and faster time to value.
Product Information
Extended Description
3AXD50001123086 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 5 pole-pair design reduces cogging torque and smooths motion. Business Impact: Improves positional accuracy and repeatability in high-precision applications, enabling tighter tolerances on conveyors and pick-and-place systems. Application: Ideal for robotics-augmented packaging lines and CNC-driven automation. Feature: Brake option for passive holding and safe stop. Business Impact: Enhances process stability during power loss or safety interruptions, reducing scrap and downtime. Application: Critical in load-holding tasks on vertical axes or stoppers in packaging equipment. Feature: Oil seal option provides environmental protection. Business Impact: Extends motor life in dusty, oily, or wash-down environments, lowering maintenance costs. Application: Food-and-beverage or automotive assembly lines with harsh surroundings. Feature: Encoder type options give flexible feedback. Business Impact: Improves closed-loop control and dynamic response, boosting throughput while preserving accuracy. Application: High-speed pick-and-place and precision milling. Feature: Compatibility with E530 servo drive enables optimized performance. Business Impact: Delivers precise speed and torque control with energy-efficient operation, reducing cycle times and energy usage. Application: General automation, packaging, and material handling using 380 V systems. Feature: Compact 5-pole design supports space-constrained installations. Business Impact: Simplifies installation and reduces cabinet footprint, cutting mounting and wiring complexity. Application: Robotic cells and compact conveyors where space is premium.
Get a Quick Quote for a ABB 3AXD50001123086
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123086?
Enquire Now
FAQs
Begin by verifying 380 V input stability and selecting encoder options per your closed-loop requirements. Mount the motor on a rigid frame, connect the E530 drive following the wiring diagram, and configure feedback gain for the selected encoder type. If brake or oil-seal options are used, ensure the corresponding hardware is correctly installed and tested during power-up boot sequences to prevent misalignment and reduce rush current.
The motor is rated at nominal power Pn of 2.5 kW with a nominal torque Tn of 7.96 N·m, designed for 380 V operation. It features a 5-pole-pair configuration which contributes to smooth torque delivery and reduced cogging, enhancing precision in fast-paced automation tasks.
Yes. The combination of a 5-pole-pair design, encoder option flexibility, and compatibility with the E530 drive enables tight motion control and repeatability, which are critical for high-precision conveyors and packaging lines. The option to add brakes and seals further improves reliability in dynamic, demanding environments.
ABB servo motors typically support CE safety compliance and offer optional IP-rated variants depending on configuration and enclosure. SIL-ready configurations can be achieved when paired with appropriate safety devices. Always confirm the exact certification set with the selected option mix for your critical regulatory requirements.
The motor’s protected options (brake, oil seal) and encoder configurations reduce downtime and extend service life in challenging environments, lowering maintenance intervals. Coupled with the E530 drive for optimized efficiency, users typically see improved cycle times and energy savings, contributing to a favorable total cost of ownership over the system lifecycle.
