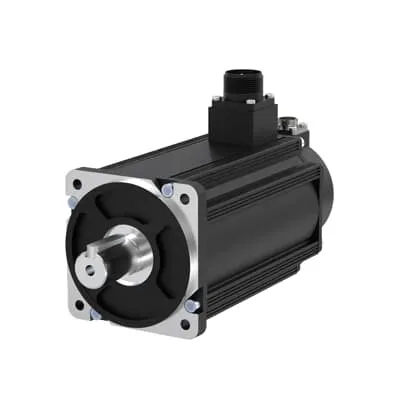

ABB 3AXD50001123093 Servo Motor - 2.5 kW, 380 V, 5-pole-pair design
Part Number: 3AXD50001123093
Quick Summary
ABB 3AXD50001123093 servo motor delivers precise, high-performance motion control for automated production lines. Engineers often face torque ripple, cogging, and integration challenges when upgrading drives; this motor offers flexible encoder options and compatible brake and oil seal configurations to minimize downtime. Typical industry certifications for ABB motors include CE conformity, with IP-rated housings and SIL-ready safety options available when paired with certified drives. With 2.5 kW power at 380 V, it supports compact layouts and straightforward field installation. Using this motor with ABB's E530 servo drive accelerates setup, improves repeatability, and reduces total cost of ownership across manufacturing lines.
Product Information
Extended Description
3AXD50001123093 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 2.5 kW LV AC servo motor with 380 V supply → Business Impact: Delivers robust torque for precise positioning in automation lines, enabling faster cycle times without sacrificing accuracy. Application: Packaging machinery and CNC-inspired workflows benefit from reliable, repeatable motion. Feature: 5 pole-pairs design → Business Impact: Reduces cogging torque for smoother low-speed operation and higher dynamic performance. Application: Robotic pick-and-place and robotics-assisted assembly gain smoother trajectories and reduced wear. Feature: Drive compatibility with E530 servo drive → Business Impact: Simplifies system integration and reduce wiring complexity, speeding commissioning. Application: Retrofit projects and new line installations in machine tools and conveyors. Feature: Encoder options, brake and oil seal configurations → Business Impact: Flexible configuration to match environmental and safety requirements, lowering downtime due to seal failures or misalignment. Application: Harsh factory floors and wash-down areas where seals and braking options matter. Feature: Compact, lightweight construction with high power density → Business Impact: Saves cabinet space and enables tighter machine layouts, lowering installation costs. Application: OEMs upgrading legacy lines or designing compact automation cells. Feature: ABB heritage and global service support → Business Impact: Improves maintenance planning, spare parts availability, and ROI through proactive support. Application: End-user plants seeking predictable uptime and long-term performance.
Get a Quick Quote for a ABB 3AXD50001123093
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123093?
Enquire Now
FAQs
When installing alongside an E530 drive, ensure proper motor orientation, correct wiring to the drive cabinet, and compatible encoder configuration. Verify cable routing to minimize EMI, confirm brake and oil seal options match the environment, and observe torque and thermal limits to prevent overheating during peak loads.
The 5-pole-pair configuration helps smooth torque delivery by distributing magnetic flux more evenly, reducing cogging torque at low speeds. This results in steadier motion, improved repeatability, and better performance for precise positioning in packaging and CNC-like applications.
ABB servo motors commonly align with CE conformity for Europe, with options for IP-rated housings and SIL-ready safety configurations when paired with certified drives. Specific certification availability depends on the exact configuration, enclosure, and installation environment chosen by the system integrator.
Yes. With 2.5 kW power, 380 V operation, and compatibility with the E530 drive, this motor supports precise positioning, smooth acceleration, and reliable operation in packaging lines and CNC-inspired machines, particularly where compact footprint and flexible encoder options matter.
ROI comes from improved process accuracy, reduced downtime, and longer service intervals due to robust sealing options. Maintenance focuses on periodic inspection of seals and connectors, encoder integrity, and drive compatibility checks, all supported by ABB’s service network for parts and technical support.
