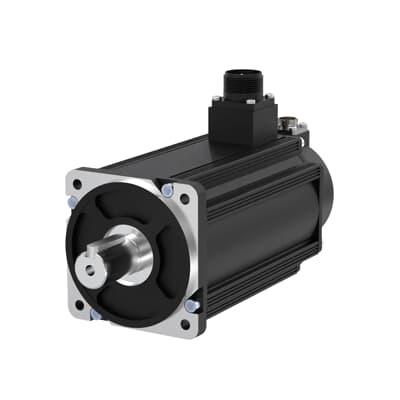

ABB 3AXD50001123109 Servo Motor - 2.5 kW, 5-Pole Cogging
Part Number: 3AXD50001123109
Quick Summary
ABB servo motor DSM delivers high-precision motion control for automated production lines and machine tools. Engineers often struggle with cogging torque, drive compatibility, and tight spaces in modern machine configurations. This motor family supports CE-compliant European installations and offers flexible options such as brake, oil seal, and encoder types, designed to fit harsh environments and varied feedback needs. When combined with ABB’s E530 servo drive, it streamlines integration, reduces wiring complexity, and delivers reliable performance across packaging, robotics, and CNC applications. The result is improved uptime, lower total cost of ownership, and a clear path to scalable automation with industrial-grade reliability.
Product Information
Extended Description
3AXD50001123109 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature → Business Impact → Application: The DSM servo motor delivers 2.5 kW at 380 V, providing robust torque for demanding motion tasks while maintaining energy efficiency and smooth acceleration. This enables higher throughput on packaging lines and precise control in CNC tooling without oversized drives. Feature → Reduced cogging torque via a 5-pole-pair design improves low-speed positioning accuracy, reducing cycle times and product defects in robotics and pick-and-place systems. Feature → Compatibility with the E530 servo drive simplifies integration, minimizes cabinet wiring, and shortens commissioning time, which lowers project risk and time-to-production. Feature → Encoder and brake options offer installation flexibility and enhanced feedback quality, improving diagnostics and serviceability in clean rooms or wet environments. Feature → Compact motor architecture frees cabinet space, enabling tighter machine layouts and easier retrofits on existing lines, reducing overall capital expenditure while preserving performance. Industry context and insights show that such configurable, drive-ready motors deliver measurable efficiency gains, predictable maintenance, and stronger ROI when deployed at scale.
Get a Quick Quote for a ABB 3AXD50001123109
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123109?
Enquire Now
FAQs
This 2.5 kW LV AC servo motor is designed for use with ABB E530 servo drive. Ensure 380 V supply, correct encoder option, and brake compatibility. Reference ABB installation guidelines to ensure proper control signals, wiring, and safety interlocks for reliable operation.
Yes. The motor is specified for 380 V operation. Use a stable 380 V power source within tolerance, select appropriate cabling and protection, and configure the drive to match the motor’s torque and speed targets for consistent performance.
The 5-pole-pair construction reduces cogging torque, smoothing motion at low speeds and improving positioning accuracy. This is particularly beneficial in precision packaging, robotics, and CNC tasks where small torque ripple can affect cycle time and part quality.
The DSM motor’s compact architecture supports tighter machine layouts. Verify mounting flange compatibility with your frame, ensure encoder interface matches the selected encoder type, and plan for brake and oil seal options if environmental protection or safety interlocks are required.
By enabling smoother motion, easier drive integration, and configurable feedback options, this motor can reduce downtime and maintenance costs. Coupled with higher uptime and improved product quality, customers typically realize faster return on investment and lower total cost of ownership over the motor’s life cycle.
