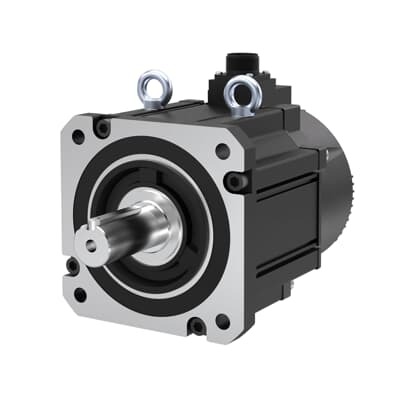

ABB 3AXD50001123123 DSM servo motor - 5 pole-pairs design
Part Number: 3AXD50001123123
Quick Summary
DSM servo motor by ABB provides high-precision LV AC motion control for automation systems in packaging, robotics, and machine tools. Engineers often struggle with cogging torque, drive integration, and space constraints in compact machines. Designed to meet CE safety standards and compatible with IP-rated installations, with encoder, brake, and oil seal options. For system integrators and OEMs, this translates to faster commissioning, reduced downtime, and predictable performance in 2.9 kW class motion. The motor delivers flexible feedback options to tailor control loops, enabling tighter speed regulation and torque tracking under load variations. With ABB engineering support and proven reliability, it helps lower total cost of ownership while sustaining performance in harsh production environments.
Product Information
Extended Description
3AXD50001123123 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 2.9 kW nominal power, 18.6 N·m torque, 380 V operation, and a 5 pole-pairs design. Business impact: Enables precise torque delivery, tight velocity control, and a compact form factor that reduces machine footprint. Application: ideal for packaging machines, robotics cells, and CNC tooling where space and accuracy matter. Feature: Brake, oil seal, and encoder options provide flexible customization for demanding environments. Business impact: improves reliability, extends service life, and reduces maintenance downtime by allowing tailored protection and feedback. Application: carrier systems, pick-and-place lines, and automated assembly. Feature: Seamless drive integration with ABB E530 servo drive; optimized parameterization and tuning. Business impact: accelerates commissioning, simplifies diagnostics, and achieves consistent performance across production runs. Application: modernizing existing lines and enabling scalable automation. Feature: 5 pole-pair design and 380 V LV AC topology deliver smooth motion with reduced cogging torque. Business impact: enhances repeatability and precision at high speeds; Application: high-speed packaging, machine tools, and robotics cells. Feature: Encoder options and flexible feedback reduce system complexity. Business impact: lowers integration risk and improves closed-loop control. Application: precision motion control across multiple axes. Installation considerations: Plug-and-play wiring, minimal reconfiguration, and compatibility with standard ABB drives support faster site start-up and reduced commissioning time.
Get a Quick Quote for a ABB 3AXD50001123123
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123123?
Enquire Now
FAQs
This DSM servo motor is designed to be used with the ABB E530 servo drive for coordinated motion. Ensure a 380 V supply, select encoder feedback options, and verify braking/oil seal configurations. The integration supports straightforward parameterization and synchronized multi-axis control for reliable production performance.
Key specifications include a 2.9 kW nominal power rating, 18.6 N·m torque (Tn), 380 V operating voltage, and a 5 pole-pairs configuration. It is an LV AC servo motor designed for compact form factors, with encoder, brake, and oil seal option variants to suit diverse applications.
Yes. The 2.9 kW, 18.6 N·m torque profile combined with a 5 pole-pairs design provides smooth, repeatable motion essential for high-speed packaging. When paired with the E530 drive and appropriate encoder feedback, you gain tight velocity control, reduced cogging, and superior repeatability across high-cycle production lines.
Brake and encoder options allow tailored protection and feedback. A brake option supports faster stall recovery and holding torque during power loss, while encoder variants enable robust position feedback for precise control. Oil seal options can improve protection against contaminants in dusty or humid environments, reducing wear and extending service life.
ROI benefits come from faster commissioning, reduced downtime, and improved motion accuracy. The E530-compatible motor enables tighter tuning, fewer aberrations in speed under load, and standardized hardware across multiple axes, translating to lower maintenance costs and higher machine uptime in continuous production environments.
