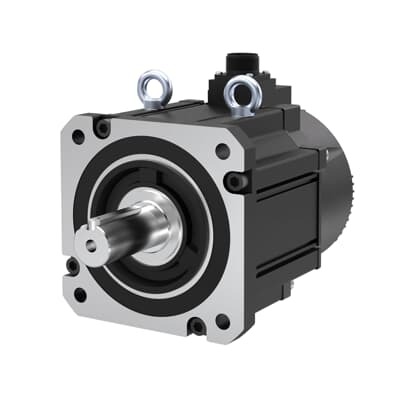

ABB 3AXD50001123130 DSM servo motor - 5 pole-pairs
Part Number: 3AXD50001123130
Quick Summary
ABB 3AXD50001123130 DSM servo motor is a precision LV AC motor designed for high-accuracy motion control in automated manufacturing and packaging lines. Engineers often struggle with cogging torque, slow dynamic response, and integration bottlenecks when upgrading servo systems. This motor family supports CE safety compliance and offers options that align with SIL-rated control schemes and robust IP-rated enclosures, helping you meet regulatory requirements without sacrificing performance. By combining a compact 5 pole-pairs design with flexible encoder options and brake configurations, it enables smaller equipment footprints, reduced maintenance, and lower total cost of ownership while boosting throughput across multiple applications.
Product Information
Extended Description
3AXD50001123130 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
The DSM servo motor delivers 2.9 kW at 380 V with a 18.6 N·m continuous torque and a 5 pole-pairs architecture that minimizes cogging torque. This translates to smoother motion, higher positioning accuracy, and reduced tuning cycles in multi-axis systems for pick-and-place and packaging lines. With E530 drive compatibility, engineers gain a unified control platform, simplifying commissioning and spare parts management while ensuring consistent performance across cells in automated lines. Flexible encoder options, brake, and oil seal allow tailoring for harsh environments or safety-critical operations, cutting downtime and extending service life. A compact footprint and lightweight build support tighter machine layouts, easier retrofits, and simplified cabinet design, lowering installation costs and accelerating time-to-market for new equipment. Overall, the motor’s high power density and configurable options help reduce energy consumption and waste, enable faster cycle times, and improve reliability in industrial automation environments.
Get a Quick Quote for a ABB 3AXD50001123130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123130?
Enquire Now
FAQs
Pairing the ABB 3AXD50001123130 DSM servo motor with the E530 drive requires matching the supply voltage (380 V), encoder feedback type, and brake option to the application. Ensure proper encoder wiring as per ABB diagrams, select the brake option if required for hold-position, and route cables to minimize EMI. Confirm motor orientation and connectors during panel wiring.
The motor offers PN 2.9 kW and TN 18.6 N·m with a 380 V supply and a 5 pole-pair configuration. This design minimizes cogging torque for smoother operation at higher speeds, enabling accurate positioning and fast dynamic response in multi-axis automation tasks such as robotics, packaging lines, and high-speed conveyors.
Yes. The 3AXD50001123130 DSM motor provides high torque density, a compact footprint, and a configurable encoder/brake setup, which supports precise positioning and repeatability essential in packaging and robotics. Its compatibility with the E530 drive streamlines integration, reduces tuning time, and improves throughput while maintaining stringent quality standards.
Typically, ABB servo motors in this class are CE-compliant for safety and electrical conformity. The design also supports compatibility with SIL-rated safety schemes and offers enclosure and configuration options that align with common IP-rated environments. Always confirm the specific product variant with your supplier to verify current certifications for your region and application.
ROI benefits come from reduced downtime, quicker cycle times, and lower integration costs thanks to E530 compatibility and configurable options (brake, oil seal, encoder). Maintenance is simplified by modular options and a compact form factor, which reduces cabinet space and cooling requirements. A reliable ABB service network supports preventive maintenance and parts availability.
