ABB 3AXD50001123215 DSM servo motor - 4 kW 380 V
Part Number: 3AXD50001123215
Quick Summary
The DSM servo motor delivers precise torque control for high-precision automation applications. Engineers often face integration delays and cogging torque when pairing motors with drives like the E530, impacting throughput. This ABB solution supports CE compliance and IP-rated options, with SIL-ready safety configurations, plus encoder types and brake/oil-seal options to match your risk profile. By combining 4 kW power with a 5-pole design, it delivers compact performance for automated production lines and robotics, driving better efficiency and ROI. This translates to lower downtime, predictable maintenance, and improved uptime across manufacturing sites.
Product Information
Extended Description

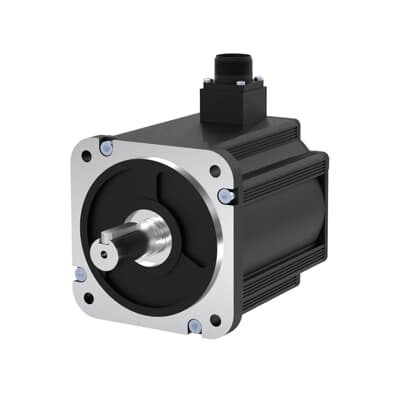

3AXD50001123215 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Five-pole-pair design reduces cogging torque, delivering smoother motion and improved repeatability across speed ranges in demanding automation tasks. This mechanical choice supports precise positioning in CNC milling, high-speed packaging, and multi-axis robotics where torque ripple directly impacts quality. This design also contributes to longer motor life by reducing mechanical stress at high speeds. The DSM servo motor delivers a nominal 4 kW at 380 V, combining high torque with a compact footprint suitable for confined machine interiors. The peak power density enables faster accelerations and shorter cycle times, helping manufacturers increase throughput without expanding cabinet space. Together, these attributes support tighter control loops and improved process stability in advanced manufacturing. Optionally, a brake configuration provides reliable axis hold during power loss or critical stop conditions, reducing slip and ensuring safe automation sequences. This capability is essential for load handling and automated safety, enabling compliant and predictable stops in conveyors, pick-and-place systems, and robotics. Oil seal options protect bearings from contaminants and moisture, extending service life in harsh environments and challenging production lines. By reducing ingress-related wear, maintenance intervals lengthen and total cost of ownership improves for outdoor installations or dusty facilities. The seals also enable longer intervals between bearing replacements, cutting downtime. Encoder type options offer flexible feedback resolution, aligning with existing control architectures and performance targets. Higher-resolution feedback improves motion stability, positioning accuracy, and synchronization in synchronized multi-axis systems. This versatility supports modernization projects without full system rewrites. Engineered to pair with the ABB E530 servo drive, the motor simplifies wiring, tuning, and system configuration for rapid deployment. This integrated approach lowers commissioning risk and accelerates time-to-value across industrial automation and motion-control applications. It also helps standardize components across sites, reducing spare parts inventory.
Get a Quick Quote for a ABB 3AXD50001123215
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123215?
Enquire Now
FAQs
Begin by confirming 380 V supply and motor wiring per the E530 installation guide, then mount the motor with proper shaft alignment and a compatible encoder type. Connect feedback, brake, and oil seal as configured; configure the drive gains for the motor constants; perform a slow-motion check before full-speed testing. Use ABB’s recommended cabling and protective enclosures for environment-specific requirements.
The motor is rated for 4 kW nominal power at 380 V, delivering 12.6 N·m of torque with a five-pole-pair design. It supports configurable encoder feedback and optional brake and oil seal, enabling flexible integration into various control architectures and environmental conditions.
Yes. The five-pole-pair design reduces cogging torque for smoother motion, while encoder options provide high-resolution feedback. When paired with the E530 drive, it delivers accurate positioning, repeatable cycles, and reliable motion control essential for CNC tooling, robotic arms, and automated packaging lines.
The solution supports CE compliance and configurable IP-rated protection, with SIL-ready safety configurations available in suitable variants. Depending on options chosen (encoder, brake, oil seal), the system can meet common industrial safety and environmental standards across EU and other markets.
ROI improves through higher throughput from faster accelerations and reduced cycle times, plus lower maintenance due to protective options and longer bearing life. The seamless E530 integration minimizes commissioning time, reduces spare parts complexity, and lowers total ownership costs across automated production lines.
