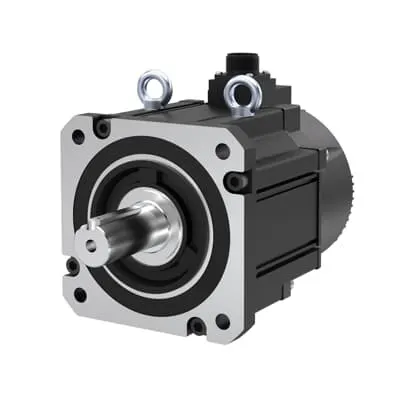

ABB 3AXD50001123239 Servo Motor - 5 Pole-Pairs
Part Number: 3AXD50001123239
Quick Summary
The ABB 3AXD50001123239 Servo Motor provides precise LV AC motion control for CNC, packaging, and automation systems. Engineers often grapple with cogging torque, motor jitter, and integration with diverse drive ecosystems. The motor supports CE conformity for essential safety and performance, with SIL-ready safety features and IP-rated options achievable through correct system integration. Optional brake, oil seal, and encoder variants enable flexible protection and compatibility with a range of encoders and control schemes. Designed to pair with ABB's E530 servo drive, the 5 pole-pairs design reduces cogging torque and simplifies tuning for smooth, repeatable motion. By delivering reliable performance with reduced maintenance and higher throughput, this motor adds tangible business value for OEMs and system integrators.
Product Information
Extended Description
3AXD50001123239 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
4.4 kW nominal power at 380 V provides robust torque for demanding axes, enabling higher acceleration and throughput while maintaining precision in packaging lines and machine tools. This capability supports direct compatibility with standard LV AC control architectures, reducing cabinet size and cooling load for OEMs. The motor is engineered to pair with ABB's E530 servo drive, simplifying commissioning, tuning, and overall system integration, which lowers project risk and startup time. Brake, oil seal, and encoder variants offer flexible protection and feedback options, extending life in harsh environments and enabling accurate closed-loop control without compromising uptime. The 5 pole-pairs design minimizes cogging torque, delivering smoother motion and higher positional repeatability for precision feeders and pick-and-place applications. Its compact form factor aids machine packaging and layout efficiency, while reliable ABB production quality helps reduce maintenance costs over the motor’s lifecycle.
Get a Quick Quote for a ABB 3AXD50001123239
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123239?
Enquire Now
FAQs
Installation with the E530 drive is straightforward due to ABB’s integrated ecosystem. Use the standard servo wiring: power, encoder feedback, and brake/encoder options as required. Ensure the motor’s 380 V supply aligns with your plant's power distribution, configure the drive for closed-loop torques, and assign encoder feedback to your control system. Check for proper grounding, shielding, and cooling to maintain peak performance and prevent cogging or jitter during startup sequences.
Key specs include Pn 4.4 kW nominal power, Tn 28.4 N·m nominal torque, and 380 V operation with a 5 pole-pair design. This combination delivers strong startup torque, smooth velocity profiles, and reduced cogging, which translates to higher positioning accuracy and faster cycle times in automated axes such as CNC spindles and pick-and-place modules.
Yes. The 4.4 kW, 28.4 N·m motor provides stable, repeatable motion with the 5 pole-pairs design that minimizes cogging. Its compatibility with the E530 drive supports precise tuning and feedback control, making it well-suited for packaging lines, assembly stations, and other high-precision manufacturing tasks where throughput and accuracy are essential.
The motor is designed to meet CE safety and performance expectations, with SIL-ready safety integration options and IP-rated protection variants available through appropriate enclosure and installation choices. Always verify the exact Certification and IP rating for your specific integration and regional requirements with your ABB distributor or system integrator.
Expected ROI comes from higher throughput, reduced downtime, and lower maintenance due to robust components and closed-loop control. With fewer crude adjustments required and longer service intervals, you gain predictable maintenance schedules and energy-efficient operation. Pairing with E530 accelerates commissioning and calibration, helping shorten project timelines and deliver consistent performance across production cells.
