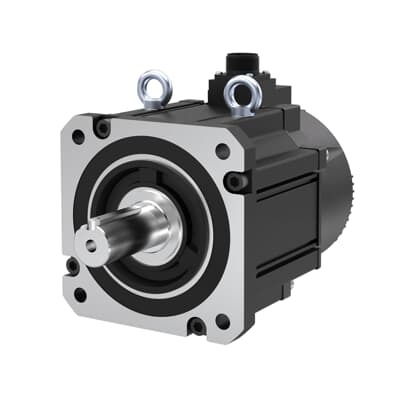

ABB 3AXD50001123253 Servo Motor - 5-pole design
Part Number: 3AXD50001123253
Quick Summary
ABB 3AXD50001123253 servo motor is a high-precision LV AC servo motor designed for closed-loop motion control in automation systems. Design engineers often grapple with cogging, torque ripple, and drive integration in high-speed cycles. Variants typically carry CE compliance and offer options such as brake, oil seal, and encoder types; verify certifications for your region and configuration. With seamless E530 drive compatibility and a compact 5-pole design, this motor boosts efficiency, reduces downtime, and scales across packaging, robotics, and material-handling applications. Additionally, this combination supports precise velocity and torque control in demanding line speeds, helping engineers meet quality targets while simplifying spare parts and service planning.
Product Information
Extended Description
3AXD50001123253 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 4.4 kW nominal power and 380 V operation with a 28.4 Nm torque rating underlines robust performance for demanding automation processes. Business Impact: Higher torque density enables faster throughput and tighter control loops, reducing cycle times and energy consumption. Application: Packaging lines, robotics cells, CNC stations, and material handling benefit from reliable acceleration profiles and predictable response. Feature: 5 pole-pair design reduces cogging torque for smoother motion and improved precision. Business Impact: Smoother operation minimizes mechanical wear, extends bearing life, and improves repeatability in high-speed tasks. Application: Pick-and-place, servo-driven conveyors, and high-precision machining. Feature: Drive compatibility with ABB E530 servo drive simplifies integration and tuning. Business Impact: Shorter commissioning, simplified maintenance, and fewer integration surprises. Application: Factory automation, turnkey systems, and retrofits. Feature: Flexible options including brake, oil seal, and encoder types enhance reliability and feedback accuracy. Business Impact: Enhanced protection in harsh environments, improved fault diagnostics, and customizable feedback for robust automation. Application: Wet or oily environments, high-precision positioning, and demanding instrumentation.
Get a Quick Quote for a ABB 3AXD50001123253
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123253?
Enquire Now
FAQs
Yes. The ABB DSM servo motor is designed to work with the E530 servo drive, enabling streamlined control loops and quicker commissioning. It supports standard mounting interfaces and can be configured with brake or encoder options to fit inline with existing automation layouts, reducing mechanical rework and cabling complexity.
The motor is rated at 4.4 kW nominal power, 380 V operation, and 28.4 Nm nominal torque. Its 5-pole-pair design helps minimize cogging torque for smooth motion, which translates to tighter speed and positioning control across typical automation cycles.
Ideal for packaging lines, robotics cells, CNC stations, and material handling, the DSM motor delivers precise velocity and torque control, high efficiency, and reliable performance even in demanding production environments. Its compact footprint and drive compatibility make retrofits and line expansions straightforward.
Typical configurations support CE compliance with region-specific certifications. It is essential to confirm the exact certifications for your installation region and selected options (brake, encoder type, oil seal) with the supplier or distributor prior to procurement.
Maintenance benefits come from options such as brake, oil seal, and encoder variants that protect against contamination and extend service life. ROI improves through reduced downtime, tighter process control, and faster commissioning when paired with the E530 drive and standard servo infrastructure.
