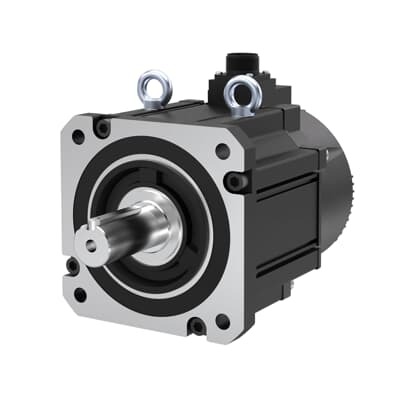

ABB 3AXD50001123260 LV AC servo motor - 5 pole-pairs
Part Number: 3AXD50001123260
Quick Summary
ABB 3AXD50001123260 LV AC servo motor provides precise motion control for industrial automation and CNC applications. Engineers often battle torque ripple and cogging at low speeds, which can compromise process stability and throughput. CE-ready with IP-rated options and configurable encoder types, the motor aligns with standard safety and protection expectations, while SIL suitability is determined by system integration. When paired with the E530 servo drive and flexible options like brake, oil seal, or encoder choices, it delivers reliable performance, improved efficiency, and a faster return on investment for modern automated lines.
Product Information
Extended Description
3AXD50001123260 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 4.4 kW rated power and 28.4 Nm torque at 380 V. Business impact: Provides robust startup torque and precise speed control without oversized drives, enabling tighter process windows and reduced energy use. Application: Packaging lines and CNC machinery where dependable torque and efficiency drive throughput. Feature: 5 pole-pairs design and compact geometry. Business impact: Reduces cogging torque and physical footprint, improving smoothness and control at low and high speeds. Application: Robotic pick-and-place, printing, and automated assembly where precision matters. Feature: Optional brake, oil seal, and encoder types. Business impact: Facilitates installation in varied environments and simplifies integration with existing safety and sealing requirements. Application: Conveyors, food processing, and wet/dust-prone environments needing reliable protection and control. Feature: E530 servo-drive compatibility. Business impact: Streamlines commissioning and maintenance with a single drive ecosystem, lowering commissioning time and wiring complexity. Application: Industry-grade automation cells that rely on ABB control architectures. Feature: LV 380 V operation. Business impact: Enables safe, efficient integration into standard plant electrical systems with favorable cable management and protection. Application: World-scale manufacturing lines and facilities prioritizing low-voltage configurations for safety and compliance.
Get a Quick Quote for a ABB 3AXD50001123260
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123260?
Enquire Now
FAQs
Yes. The 3AXD50001123260 LV AC servo motor is designed for seamless integration with ABB E530 servo drives, enabling cohesive closed-loop control, smoother velocity profiles, and precise positioning. Ensure encoder type and optional components like a brake or oil seal are matched to the specific application and environmental needs.
The motor is rated at 4.4 kW (Pn) with a nominal torque of 28.4 Nm (Tn) and operates on a 380 V supply. It features a 5 pole-pair configuration, making the design compact and capable of reducing cogging torque for smoother operation across speed ranges.
A 5 pole-pair design distributes magnetic interactions more evenly, reducing cogging torque and enabling finer, more stable motion control at various speeds. This translates to tighter tolerances in robotic handling, smoother acceleration, and higher overall system efficiency in continuous production lines.
Plan for proper 380 V power provisioning, suitable cable routing, and connector integrity. Consider encoder wiring, mounting orientation, and any optional components such as brake or oil seal to suit the environment. Verify enclosure protection and environmental protections to align with plant safety and uptime targets.
The combination of high torque, compact form, and E530 drive compatibility supports higher throughputs and reduced downtime. Optional encoders and protective options minimize maintenance, while efficient electric drive operation lowers energy use, contributing to faster payback in high-volume packaging and automation applications.
