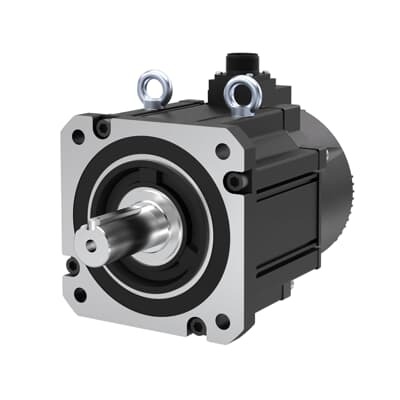

ABB 3AXD50001123338 Servo Motor - 5-Pole Design
Part Number: 3AXD50001123338
Quick Summary
ABB 3AXD50001123338 servo motor is a high-performance LV AC motor for precise motion control in automation. Engineers often struggle with motor-drive integration, cogging torque, and setup time, but this model offers flexible encoder options and a compact 5-pole design. Designed to support CE safety compliance, IP-rated variants, and SIL-ready configurations, it helps meet regulatory and reliability standards. Coupled with E530 drive compatibility and configurable brake or oil seal options, it delivers predictable performance and faster time-to-value for manufacturing lines.
Product Information
Extended Description
3AXD50001123338 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Flexible options deliver adaptation to different environments: brake for safe stops, oil seal for harsh or washdown conditions, and encoder type choices for feedback fidelity. Business impact: reduces integration time and spare-part variety while improving uptime in automation cells. Application: packaging lines and robotics where safety and feedback accuracy are critical. The 5-pole-pair design reduces cogging torque, enabling smoother motion and higher precision in high-speed conveyors and pick-and-place tasks. Business impact: improved traceability and repeatability with tighter motor control. Application: precision assembly and CNC-like applications where consistent torque is essential. E530 drive compatibility offers a streamlined control loop, reducing commissioning time and easing software integration across ABB components. Business impact: faster time-to-value and lower engineering overhead. Application: ABB ecosystem deployments requiring cohesive hardware and software. The motor’s compact geometry supports space-constrained layouts, enabling easier integration into compact automation cells. Business impact: better enclosure planning and reduced overall system footprint. Application: robotic arms and packaging machinery where enclosure space is at a premium. Brake and encoder options further enhance reliability and feedback quality, while the oil-seal variant provides protection in challenging environments. These features translate to lower maintenance costs and longer service life in demanding production lines.
Get a Quick Quote for a ABB 3AXD50001123338
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123338?
Enquire Now
FAQs
To install, verify supply voltage is 380 V and connect the motor to the E530 drive according to the E530 wiring diagram. Select encoder type based on your feedback requirement, set the motor’s parameterization within the drive to match the 5-pole configuration, and configure braking if safety procedures call for it. Use proper shielded cables and earth grounding to minimize noise. Finally, run a low-speed calibration to confirm torque and speed feedback, then progressively ramp to operating speed while monitoring current and temperature.
The DSM servo motor supports multiple encoder types to tailor feedback precision and robustness. Higher-resolution encoders improve position and velocity accuracy, reducing tracking error in high-precision tasks like pick-and-place and CNC-like operations. Encoder choice also influences fault protection and backlash handling, so select an option that aligns with your control loop bandwidth and noise environment for stable closed-loop control.
Yes. With 5 kW nominal power, 380 V supply, a 5-pole design that minimizes cogging torque, and compatibility with the E530 drive, this motor is well-suited for fast packaging lines, conveyor systems, and robotic arms. The availability of brake and encoder options enhances safety and precision, making it a strong choice for automated handling, sorting, and assembly tasks.
The motor is designed to support common industry safety and reliability expectations, including CE safety compliance and options for IP-rated protection. SIL-ready configurations are described to support safety-critical applications. When selecting the variant, verify the specific IP rating and certification package offered for your region to ensure compliance with local regulations and plant safety requirements.
The motor’s flexible options (brake, oil seal, encoder types) reduce integration time and inventory, lowering total cost of ownership. Its robust design and compatibility with the E530 drive streamline commissioning and diagnostics, contributing to higher uptime. Maintenance is simplified through standardized ABB components and a choice of protective features, helping extend service intervals and reduce unexpected downtime.
