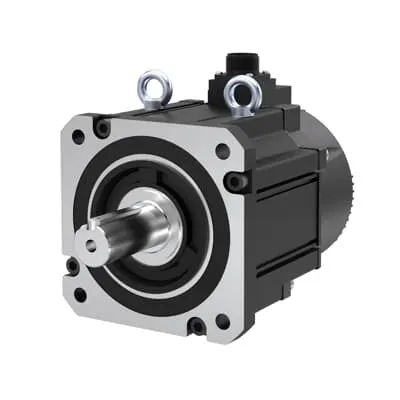

ABB 3AXD50001123352 Servo Motor - 7.5 kW, 380 V
Part Number: 3AXD50001123352
Quick Summary
ABB 3AXD50001123352 Servo Motor is a high-performance LV AC servo solution for precise motion control in automation applications. This motor helps address torque ripple and integration challenges that slow production in packaging, robotics, and machine tools. In practice, CE readiness, IP-rated variants, and SIL-friendly options are essential for safe, compliant operation in harsh industrial environments, while the five-pole-pair design reduces cogging for smoother operation. Paired with ABB's E530 drive, it offers flexible brake, oil seal, and encoder configurations, delivering faster commissioning, higher uptime, and lower total cost of ownership through optimized efficiency and predictable performance across a range of line speeds and loads.
Product Information
Extended Description
3AXD50001123352 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
7.5 kW nominal power in a compact LV AC package enables higher throughput and robust torque at a range of speeds, reducing the need for oversized drives and accelerating cycle times in packaging lines and small automation cells. Business impact: improved line productivity and reduced capital expenditure. Application: fast-paced pick-and-place and CNC-supporting equipment. The 5 pole-pairs design lowers cogging torque, delivering smoother motion and higher positional accuracy for precision routing and robotics, which translates to fewer rejects and tighter tolerances. Business impact: improved yield and quality. Application: high-precision assembly and milling applications. Brake, oil seal, and encoder type options provide installation flexibility, better environmental protection, and easier maintenance in harsh or dirty environments. Business impact: longer component life, reduced maintenance downtime. Application: conveyors, motors in damp or dusty plants. Compatibility with E530 drives simplifies integration with existing ABB control ecosystems, reducing commissioning time and enabling consistent tuning across fleets. Business impact: faster deployment and standardized training. Application: multi-machine installations. The motor’s compact footprint supports space-constrained layouts, enabling denser automation cells and simplified retrofits. Business impact: space savings, easier retrofits, and scalable automation. Application: retrofits in legacy lines and new machine builds. Overall, the combination of efficiency, reliability, and flexible options supports ongoing productivity gains and a lower total cost of ownership in industrial settings.
Get a Quick Quote for a ABB 3AXD50001123352
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123352?
Enquire Now
FAQs
This servo motor is designed to operate with ABB's E530 servo drive, providing straightforward parameter migration, encoder feedback options, and encoder type variants. The setup supports brake and seal configurations and simplifies integration with existing ABB control systems, reducing commissioning time and ensuring stable torque and speed profiles across typical automation tasks.
The motor is rated at 7.5 kW nominal power and operates on a 380 V supply with a nominal torque of 48 N·m. It uses a 5 pole-pair design to enhance dynamic performance and reduce cogging torque, making it suitable for high-precision positioning in packaging, robotics, and CNC-type applications.
Yes. The 5 pole-pairs design minimizes cogging torque for smoother motion and improved repeatability, which is critical in robotics pick-and-place and packaging workflows. When paired with the E530 drive, it delivers fast, predictable responses, enabling tight control loops and reduced cycle times in demanding automation scenarios.
Consider selecting brake, oil seal, and encoder type options to match your environment and uptime requirements. Ensure motor mounting aligns with standard ABB interfaces, verify cable routing for EMI, and plan for drive compatibility with the E530 system. The motor’s compact footprint also helps maximize available space in crowded control panels or machine frames.
Expected ROI comes from improved throughput due to higher torque density and smoother motion, reduced downtime thanks to flexible protection options, and easier commissioning with a proven E530 compatibility. Long-term maintenance benefits include fewer wear-induced faults and simpler encoder replacements, contributing to lower lifecycle costs in continuous production environments.
