ABB LV AC servo motor 3AXD50001123369 - 5 pole-pairs design
Part Number: 3AXD50001123369
Quick Summary
ABB LV AC servo motor is designed to deliver precise torque for automated machinery such as packaging lines. Engineers often face challenges integrating servo motors with existing controls, achieving repeatable motion, and minimizing tuning time. This model supports flexible options including brake, oil seal, and encoder types, with a compact, 5 pole-pair design that reduces cogging torque for smoother operation. By pairing with ABB's E530 servo drive, it enables streamlined commissioning, predictable performance, and easier maintenance across automated lines. With robust safety and compliance considerations, it helps you meet project timelines and total cost of ownership targets while supporting long-term production efficiency.
Product Information
Extended Description

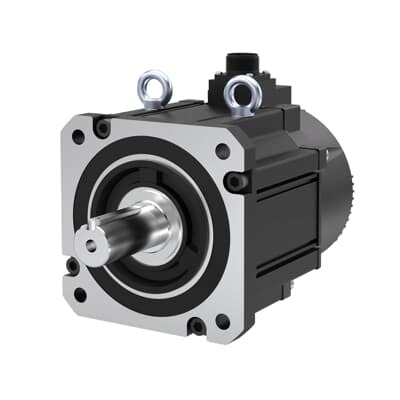

3AXD50001123369 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
The 7.5 kW servo motor delivers high torque at 380 V, enabling greater throughput in automated lines and packaging applications, while maintaining smooth velocity profiles that reduce cycle times. The 5 pole-pair design minimizes cogging torque, delivering precise positioning and repeatable motion essential for CNC and assembly operations, which directly translates to lower scrap rates and improved first-pass yields. Optionally integrating brake, oil seal, and encoder types provides customization for hazardous or dirty environments and for tight positioning tolerances, reducing unplanned downtime and maintenance frequency. Compatibility with the E530 servo drive simplifies commissioning and system integration, ensuring consistent performance across multiple axes and reducing engineering hours. The compact form factor also frees cabinet space, supporting scalable line expansion and easier installation in retrofit projects.
Get a Quick Quote for a ABB 3AXD50001123369
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001123369?
Enquire Now
FAQs
Begin with confirming 380 V supply compatibility and correct wiring for the motor phase, encoder signals, and brake (if configured). Use ABB's E530 setup utility to configure motor parameters, enable the encoder feedback, and tune velocity and torque loops. Verify brake and encoder options are correctly selected for the application and run a slow-speed initial motion profile to confirm smooth acceleration and deceleration without cogging or misalignment.
The motor is rated at 7.5 kW with a 380 V supply, delivering a nominal torque of 48 N·m and employing a 5 pole-pair configuration. It is designed for integration with the E530 servo drive and supports multiple encoder and sealing options to tailor performance to the application requirements.
Yes. The 7.5 kW rating, 48 N·m torque, and 5 pole-pair design provide robust, precise motion suitable for packaging lines, material handling, and CNC-driven tasks. The motor’s compact form factor and easy drive integration minimize cycle times and enable precise, repeatable positioning across multiple axes.
In typical automation deployments, CE compliance and appropriate IP protection ratings are standard considerations. Depending on regional regulations and the specific configuration (brake, encoder type, enclosure), additional safety and regulatory requirements may apply. Verify with the supplier for your exact configuration to ensure alignment with local standards and plant safety programs.
The motor’s high reliability, reduced cogging torque, and streamlined integration with the E530 drive contribute to lower downtime and faster commissioning. A compact footprint saves cabinet space and can simplify upgrades. Regular preventive maintenance on seals and encoders, along with periodic drive firmware updates, helps sustain performance and extend service life, delivering predictable operating costs and improved total cost of ownership.
