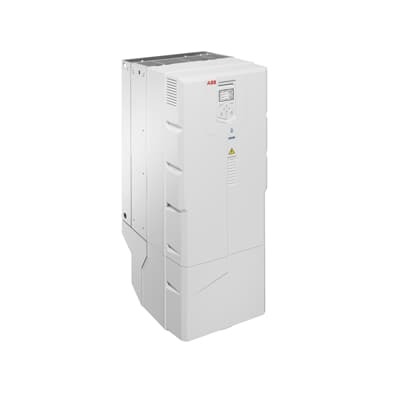

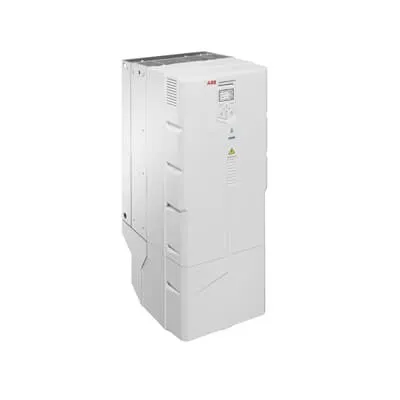

ABB 3AXD50001154608 HVAC LV AC Wall-Mounted Drive - IP21 Enclosure
Part Number: 3AXD50001154608
Quick Summary
HVAC drive ABB 3AXD50001154608 delivers precise speed control for fans, pumps and compressors in commercial HVAC systems. The challenge of long installation and commissioning times can delay projects and inflate costs. This model offers IP21 enclosure with IP55 options, Bluetooth remote commissioning, and HVAC-specific control features to simplify startup and operation. It supports applications from air handling units to chillers, enabling smooth, energy-efficient performance in normal and mission-critical scenarios. By integrating directly with HVAC equipment, it reduces wiring, panel space, and commissioning effort, delivering faster ROI for building services projects and improved system reliability. Its built-in settings menu and intuitive panel simplify commissioning for engineers and technicians alike, further lowering lifecycle costs.
Product Information
Extended Description
3AXD50001154608 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: The ACH580 HVAC drive has built-in control for fans, pumps and compressors, enabling centralized operation. Business Impact: reduces wiring, simplifies control architecture, and shortens project timelines. Application: ideal for air handling units, pumps feeding chillers, and variable-air-volume systems. Feature: Advanced speed control optimizes energy use across variable torque and constant torque loads. Business Impact: lowers energy consumption and reduces operating cost in high-usage HVAC zones. Application: suitable for large air-handling units and pumping stations in commercial buildings. Feature: Intuitive control panel with HVAC-specific primary settings menu and help assistants. Business Impact: accelerates startup and commissioning, minimizing on-site errors. Application: ideal for contractors and in-house commissioning teams working on retrofit or new-build projects. Feature: Bluetooth capability enables remote commissioning and monitoring. Business Impact: reduces site visits, improves maintenance planning, and speeds diagnostics. Application: useful for distributed HVAC networks and facilities with accessibility constraints. Feature: IP21 enclosure with IP55 and flange-mount options enhances installation flexibility. Business Impact: broadens deployment in varied indoor environments and enables safer, more durable installations. Application: suitable for wall-mounted installations in mechanical rooms and service corridors with diverse protection requirements. Feature: Power rating of Pn 250 kW, 490 A at 400 V supports demanding HVAC applications. Business Impact: provides robust motor control for fans, pumps and compressors with proven reliability. Application: ideal for large-diameter fans and high-capacity chillers in mid- to large-size buildings.
Get a Quick Quote for a ABB 3AXD50001154608
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001154608?
Enquire Now
FAQs
The ACH580-based drive is designed for fans, pumps, and compressors across HVAC applications such as air handling units, chillers, and variable-air-volume systems. It supports 400 V networks and is suitable for wall-mounted installation with options for IP55 protection. When integrating, verify motor nameplate compatibility, cable routing, and control sequences to ensure seamless operation with existing building management systems.
Key specs include Pn 250 kW, 490 A, and 400 V operation. The device ships with an IP21 enclosure by default, with IP55 option available, and offers HVAC-focused control features. Bluetooth remote commissioning is supported, enabling setup and monitoring without on-site visits. These specs make it suitable for high-capacity HVAC motors in commercial facilities.
Yes. The ACH580 HVAC drive is designed for fans, pumps, compressors, AHUs, and chillers. Its built-in HVAC control logic, energy-conscious speed regulation, and easy commissioning workflow help optimize airflow, refrigerant pumps, and condenser circuits. This leads to improved system stability, reduced energy use, and faster project delivery in new builds or retrofits.
The standard enclosure is IP21, with IP55 and flange-mount variants available as options. IP21 is suitable for indoor mechanical rooms, while IP55 variants offer enhanced protection against dust and water ingress in harsher environments. Selection depends on the installation site, wiring routes, and required ingress protection for HVAC control cabinets.
The drive reduces commissioning time with HVAC-tailored settings and Bluetooth-enabled remote monitoring, which lowers on-site labor costs. Its reliable ACH580 platform provides robust motor control for fans and pumps, reducing downtime and energy waste. Over the project lifecycle, this translates to lower maintenance costs and a faster return on investment for building services upgrades.
