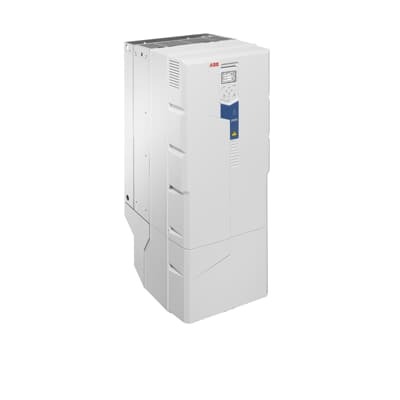

ABB 3AXD50001155025 LV AC Wall Drive - IP21 Enclosure
Part Number: 3AXD50001155025
Quick Summary
ABB 3AXD50001155025 LV AC wall-mounted drive is designed for water and wastewater pumping applications. If you’re battling energy waste, irregular flow, and downtime from aging drives, this compact solution helps stabilize operations and lower total cost of ownership. The unit is CE compliant, available in IP21 standard enclosure with IP55 as an option, and UL-capable for 480 V variants, offering robust regulatory and environmental coverage. With built-in pump features and intuitive controls, it enables measurable business value through energy savings, reliable performance, and accelerated commissioning in municipal and industrial pump stations.
Product Information
Extended Description
3AXD50001155025 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature Sensorless flow calculation → Business Impact Improves pump efficiency by optimizing flow without external sensors, reducing energy consumption and wear. Application Water/wastewater pumping where precise flow control is critical. Feature Multipump control and level control → Business Impact Enables coordinated operation of multiple pumps, minimizing start/stop cycles and stabilizing reservoir levels. Application Municipal and industrial pumping stations requiring reliable backup sequencing. Feature Dry run protection and soft ramps → Business Impact Extends pump life and prevents damage from dry-running, while gentle ramping lowers mechanical stress. Application New installations and retrofits where downtime costs are significant. Feature Quick ramps and impeller cleaning solution → Business Impact Shortens commissioning time and maintains pump cleanliness, improving long-term headroom. Application Benefit in turbidity-prone or biofouling environments. Feature Built-in energy calculator → Business Impact Quantifies energy savings, supporting ROI demonstrations and ongoing energy management. Application Plant-wide energy optimization initiatives. Feature Hand-Off-Auto control panel, Drive Composer compatibility, optional Bluetooth panel → Business Impact Improves operator usability and remote diagnostics, reducing training time. Application Field deployments with remote monitoring and commissioning needs.
Get a Quick Quote for a ABB 3AXD50001155025
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001155025?
Enquire Now
FAQs
The drive is designed for wall-mount installation with an IP21 standard enclosure and optional IP55 units. Plan a vertical space near the pump stations, ensure proper ventilation, and connect power and motor cables per ABB wiring diagrams. Use Drive Composer for configuration and verify safe start-up with Hand-Off-Auto control to minimize operator risk.
The model supports up to 250 kW with a rated current of 490 A at 400 V. It is CE-compliant, UL-capable for 480 V variants, and available in IP21 (standard) with IP55 optional enclosures. It includes sensorless flow calculation, multipump control, and protective features such as dry run protection.
Yes. The ACQ580-01 family features multipump control and level management, enabling coordinated operation of several pumps. This reduces start-stop cycles, maintains required water levels, and improves overall reliability in wastewater treatment and public utility applications.
The drive is CE compliant and UL-capable for the 480 V variant, with IP21 as standard enclosure and optional IP55. These certifications support regulatory compliance and safer operation in challenging water and wastewater environments.
The built-in energy calculator and sensorless flow features enable measurable energy savings, while dry run protection and soft ramps reduce maintenance costs and equipment wear. Coupled with easier commissioning via Drive Composer and remote control options, the solution supports faster payback in municipal and industrial pumping projects.
