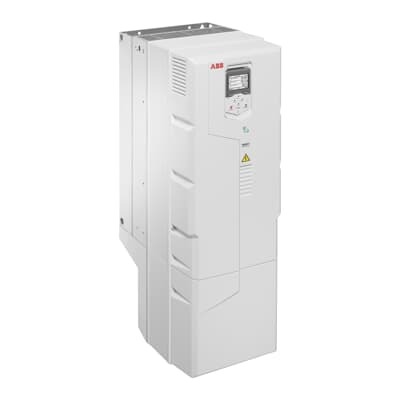

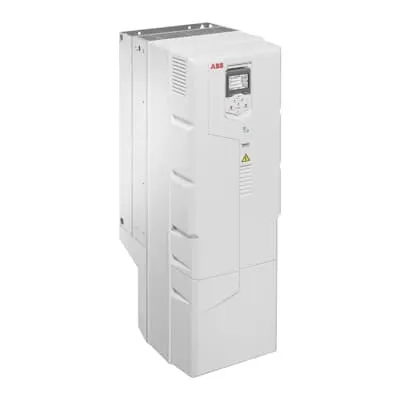

ABB 3AXD50001195922 Frequency Converter - IP21, 400V, 110kW
Part Number: 3AXD50001195922
Quick Summary
ABB 3AXD50001195922 is a 110 kW LV AC wall-mounted drive designed for solar pumping applications. This compact frequency converter addresses the frequent challenge of delivering reliable, variable-speed control in remote or space-constrained installations. With IP21 protection and a NEMA Type 1 enclosure, it meets typical indoor industrial environments while maintaining robust performance. The drive supports CAN, PROFIBUS, and PROFINET IO networks and includes a control unit with PC connection for straightforward integration and commissioning. For engineers and procurement teams, this device combines high reliability with flexible connectivity and scalable output, enabling efficient system optimization and reduced total cost of ownership in solar pumping projects.
Product Information
Extended Description
3AXD50001195922 ABB: LV AC wall-mounted drive for solar pump, IEC: Pn 110 kW, 206 A, 400 V (ACQ80-01-110KW-4)
Country of Origin
Finland (FI)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044085
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACQ80-01-110KW-4 PN: 110 kW, IN: 206 A
Made To Order
Yes
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
54 kg
Product Net Depth / Length
370 mm
Product Net Height
880 mm
Product Net Width
284 mm
Package Level 1 Depth / Length
992 mm
Package Level 1 Height
598 mm
Package Level 1 Width
400 mm
Number of Phases
3
Degree of Protection
IP21
Enclosure Type NEMA
Type1
Frequency (f)
47.5 ... 63 Hz
Frame Size
R7
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Communication Protocol
CAN | PROFIBUS | PROFINET IO
Number of Hardware Interfaces
RS-485 1
Includes
Control unit | PC connection
Output Current, Normal Use (In)
206 A
Output Current, Light-Overload Use (ILD)
196 A
Output Current, Heavy-Duty Use (IHD)
169 A
Output Power, Normal Use (Pn)
110 kW
Output Power, Light-Overload Use (PLD)
110 kW
Output Power, Heavy-Duty Use (PHD)
90 kW
Apparent Power Output
143 kV·A
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Product Name
Frequency converter
Feature → Business Impact → Application. The 110 kW output with 206 A nominal current enables high-efficiency control of solar pumps, reducing energy waste while maintaining consistent flow in variable irradiation conditions. This translates to measurable energy savings and improved system uptime in water management and irrigation. Feature → 380-480 V input and 47.5–63 Hz operation provides broad compatibility with regional power supplies, simplifying site installation and reducing design time for multi-site deployments. Business impact: faster commissioning, lower installation costs, and improved return on investment for solar pumping projects. Feature → Wall-mounted enclosure (IP21, NEMA Type 1) and compact dimensions (370 mm x 880 mm x 284 mm) save panel space and simplify mounting in existing control rooms or equipment cabinets. Application: ideal for retrofit or new builds where space is at a premium. Feature → Integrated communications (CAN, PROFIBUS, PROFINET IO) and RS-485 1 interface enable seamless integration with PLCs and SCADA systems, reducing wiring complexity and enabling predictive maintenance. Business impact: improved data visibility, easier remote diagnostics, and faster fault resolution. Feature → Includes control unit and PC connection, plus comprehensive on-device configuration options, which minimize on-site configuration time and help ensure correct parameterization for solar-pumped discharge needs. Application: useful in remote solar pump stations and agricultural irrigation systems. Feature → 3-phase operation with precise over-current protection and defined output power (Pn 110 kW, P_LD 110 kW, P_HD 90 kW) supports robust performance under load fluctuations common in solar-driven pumping. Business impact: safer operation, reduced risk of motor stalls, and extended pump life. Industry context: the drive aligns with long-life, low-maintenance solar-powered pumping strategies and supports ongoing energy-management initiatives. Long-tail keywords: ABB frequency converter for solar pumps, wall-mounted LV drive, 380-480V three-phase drive, IP21 rugged enclosure, CAN PROFIBUS PROFINET IO integration, RS-485 field bus, 110 kW motor drive, 206 A output, 3-phase solar pumping drives.
