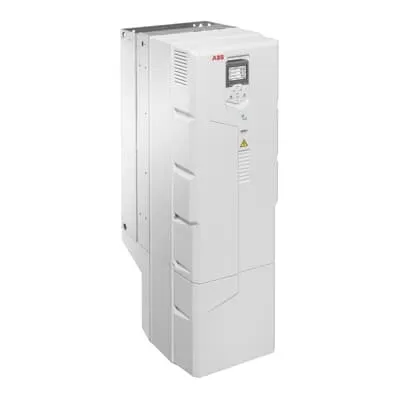

ABB 3AXD50001195939 Frequency Converter - 132 kW, 400 V, IP21
Part Number: 3AXD50001195939
Quick Summary
ABB 3AXD50001195939 Frequency Converter provides precise speed control for solar pump systems in a compact LV drive. Engineers often struggle with variable PV input and motor protection, which this drive mitigates through adaptive control and robust protection. It carries IP21 protection with a NEMA Type 1 enclosure and supports 3-phase operation, plus CAN, PROFIBUS, and PROFINET IO for seamless networking. In terms of business value, it delivers energy efficiency, improved uptime, and straightforward integration into existing automation architectures, making it a strong fit for industrial irrigation and water management applications.
Product Information
Extended Description
3AXD50001195939 ABB: LV AC wall-mounted drive for solar pump, IEC: Pn 132 kW, 246 A, 400 V (ACQ80-01-132KW-4)
Country of Origin
Finland (FI)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044085
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACQ80-01-132KW-4 PN: 132 kW, IN: 246 A
Made To Order
Yes
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
69 kg
Product Net Depth / Length
393 mm
Product Net Height
965 mm
Product Net Width
300 mm
Package Level 1 Depth / Length
1145 mm
Package Level 1 Height
654 mm
Package Level 1 Width
485 mm
Number of Phases
3
Degree of Protection
IP21
Enclosure Type NEMA
Type1
Frequency (f)
47.5 ... 63 Hz
Frame Size
R8
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Communication Protocol
CAN | PROFIBUS | PROFINET IO
Number of Hardware Interfaces
RS-485 1
Includes
Control unit | PC connection
Output Current, Normal Use (In)
246 A
Output Current, Light-Overload Use (ILD)
234 A
Output Current, Heavy-Duty Use (IHD)
206 A
Output Power, Normal Use (Pn)
132 kW
Output Power, Light-Overload Use (PLD)
132 kW
Output Power, Heavy-Duty Use (PHD)
110 kW
Apparent Power Output
170 kV·A
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Product Name
Frequency converter
Feature: Wall-mounted LV frequency converter designed for solar pumps. Benefit: Saves space in control rooms and simplifies installation in compact plant footprints. Application: Ideal for solar irrigation setups where enclosure footprint is a priority and maintenance access is needed. Feature: High-power capability with PN 132 kW and IN 246 A. Benefit: Aligns with large pump curves, minimizes idle losses, and supports rapid startup and precise speed control. Application: Industrial irrigation and water-mumping applications requiring robust drive performance. Feature: CAN | PROFIBUS | PROFINET IO communication. Benefit: Seamless integration into existing automation networks, enabling centralized monitoring and diagnostics. Application: Automation-enabled pumping stations and smart irrigation systems. Feature: IP21 protection and NEMA Type 1 enclosure. Benefit: Proven protection for indoor installations and protection against dust and incidental moisture. Application: Factory floors and plant rooms where reliability and ease of service are critical. Feature: Includes control unit and PC connection. Benefit: Accelerated commissioning and easier parameter tuning, reducing commissioning time and startup risk. Application: New installations and retrofit projects where fast bring-up matters. Insight: This ABB drive is designed with industry-standard interfaces to reduce integration effort and total cost of ownership in solar pumping projects, aligning with long-term maintenance planning and lifecycle optimization.
Get a Quick Quote for a ABB 3AXD50001195939
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001195939?
Enquire Now
FAQs
This drive is designed for wall-mounted installation and ships with the required control unit and PC connection. It supports three-phase input 380-480 V and communication via CAN, PROFIBUS, and PROFINET IO, plus RS-485 for local networks. Quick start and straightforward wiring help accelerate commissioning in solar pumping systems.
Key specs include PN 132 kW, IN 246 A, PN output 132 kW, Vin 380–480 V, f 47.5–63 Hz, 3-phase operation, and an apparent power of 170 kVA. Enclosure is IP21 (NEMA Type 1). It includes a control unit and PC connection for configuration.
Yes. The 132 kW drive is tailored for solar pumping with robust protection, energy efficiency, and speed control to match pump curves. It supports wall mounting, ensures reliable operation in irrigation and water-management applications, and integrates with standard automation networks for centralized control.
The unit features IP21 protection and a Type 1 enclosure suitable for indoor wall mounting. Origin is Finland (FI), with a stocking profile showing 0-day lead time and stock at CNIAB001EXPU warehouses. The product is listed with customs tariff 85044085 and supports CAN/PROFIBUS/PROFINET IO for networked operation.
Lead time is listed as 0 day, and stock is available in selected warehouses with a minimum order of 1 piece. Made-to-order status is Yes, so confirm current availability. The frequency converter offers energy savings, reduced motor wear, and improved uptime, translating to lower operating costs in solar pumping and irrigation projects.
