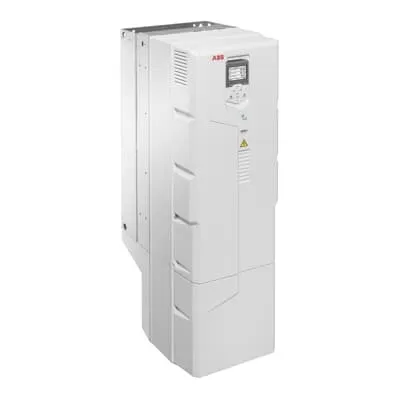

ABB 3AXD50001195946 Frequency Converter - IP21
Part Number: 3AXD50001195946
Quick Summary
The ABB 3AXD50001195946 frequency converter provides precise motor control for solar-powered pumping systems. In remote installations with variable solar input, achieving consistent performance and minimizing maintenance can be challenging. This drive offers IP21 protection, a Type1 enclosure, and supports CAN, PROFIBUS, and PROFINET IO for seamless plant-wide integration. Its compact, wall-mounted design and 160 kW rating deliver reliable efficiency and scalable control for renewable energy projects and water management applications.
Product Information
Extended Description
3AXD50001195946 ABB: LV AC wall-mounted drive for solar pump, IEC: Pn 160 kW, 293 A, 400 V (ACQ80-01-160KW-4)
Country of Origin
Finland (FI)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044085
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACQ80-01-160KW-4 PN: 160 kW, IN: 293 A
Made To Order
Yes
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
69 kg
Product Net Depth / Length
393 mm
Product Net Height
965 mm
Product Net Width
300 mm
Package Level 1 Depth / Length
1145 mm
Package Level 1 Height
654 mm
Package Level 1 Width
485 mm
Number of Phases
3
Degree of Protection
IP21
Enclosure Type NEMA
Type1
Frequency (f)
47.5 ... 63 Hz
Frame Size
R8
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Communication Protocol
CAN | PROFIBUS | PROFINET IO
Number of Hardware Interfaces
RS-485 1
Includes
Control unit | PC connection
Output Current, Normal Use (In)
293 A
Output Current, Light-Overload Use (ILD)
278 A
Output Current, Heavy-Duty Use (IHD)
246 A
Output Power, Normal Use (Pn)
160 kW
Output Power, Light-Overload Use (PLD)
160 kW
Output Power, Heavy-Duty Use (PHD)
132 kW
Apparent Power Output
203 kV·A
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Product Name
Frequency converter
Feature → Business Impact → Application: The 3-phase 380-480 V input and PN 160 kW output enable strong, controllable torque during variable-grid conditions, reducing pump stall and wear while optimizing energy use in solar pumping systems. Application: solar pump drives for irrigation and water treatment. The IP21 protection and Type1 enclosure simplify installation in standard industrial rooms, increasing uptime and reducing protective housing costs. Application: marine, manufacturing, and remote facilities where environmental exposure is limited to indoor plant areas. CAN, PROFIBUS, and PROFINET IO communication provide seamless PLC integration, enabling centralized monitoring and fast fault isolation. Application: networked automation architectures and modern water-management systems. Includes control unit and PC connection for rapid configuration, commissioning, and on-site tuning, lowering startup time. Application: accelerated project ramp-ups and reduced commissioning risk. Output currents I_n 293 A, I_LD 278 A, I_HD 246 A and P_n 160 kW deliver robust drive performance across normal, light, and heavy-duty use. Application: reliable pump operation under varying loads. Stocked at Finland-based warehouses with 0 day lead time, ensuring quick fulfillment for project pipelines. Application: procurement resilience and shorter time-to-operate for critical solar pumping projects.
