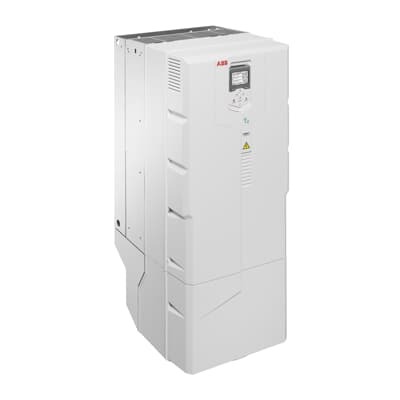

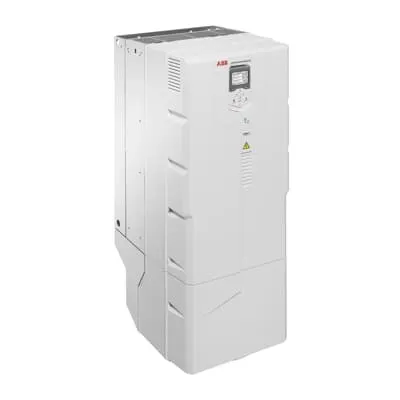

ABB 3AXD50001195953 LV AC wall-mounted drive - IP21
Part Number: 3AXD50001195953
Quick Summary
ABB 3AXD50001195953 LV AC drive for solar pump applications delivers precise speed and torque control for irrigation and PV pumping systems. Engineers face variability in solar input and the need to protect motors from overcurrent, faults, and run-time disturbances—this drive mitigates those risks with robust soft-start, fault management, and wide operating ranges. Key certifications and enclosures include IP21 protection with EN/NEMA Type 1 compatibility, plus a 380–480 V input range and CAN | PROFIBUS | PROFINET IO communications for reliable integration. Stocked options and fast lead times support quick project rollout, delivering efficiency gains and lower total cost of ownership in industrial solar pumping deployments.
Product Information
Extended Description
3AXD50001195953 ABB: LV AC wall-mounted drive for solar pump, IEC: Pn 200 kW, 363 A, 400 V (ACQ80-01-200KW-4)
Country of Origin
Finland (FI)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044085
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACQ80-01-200KW-4 PN: 200 kW, IN: 363 A
Made To Order
Yes
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
97 kg
Product Net Depth / Length
418 mm
Product Net Height
955 mm
Product Net Width
380 mm
Package Level 1 Depth / Length
1145 mm
Package Level 1 Height
654 mm
Package Level 1 Width
485 mm
Number of Phases
3
Degree of Protection
IP21
Enclosure Type NEMA
Type1
Frequency (f)
47.5 ... 63 Hz
Frame Size
R9
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Communication Protocol
CAN | PROFIBUS | PROFINET IO
Number of Hardware Interfaces
RS-485 1
Includes
Control unit | PC connection
Output Current, Normal Use (In)
363 A
Output Current, Light-Overload Use (ILD)
345 A
Output Current, Heavy-Duty Use (IHD)
293 A
Output Power, Normal Use (Pn)
200 kW
Output Power, Light-Overload Use (PLD)
200 kW
Output Power, Heavy-Duty Use (PHD)
160 kW
Apparent Power Output
251 kV·A
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Product Name
Frequency converter
Feature: 200 kW nominal output and 363 A current tolerance enable strong motor torque control for high-demand solar pumps. Business Impact: Higher system efficiency and reduced motor wear translate to lower energy costs and longer pump life in irrigation schemes. Application: Suitable for PV-powered water transfer where stable performance is required across 47.5–63 Hz operating ranges. Feature: 380–480 V three-phase input and 3-phase operation simplify integration with standard plant power rails. Business Impact: Streamlined installation and reduced cabling complexity, enabling faster commissioning and easier upgrades in existing facilities. Application: Solar irrigation projects and distributed pumping stations with common European electrical standards. Feature: CAN, PROFIBUS, and PROFINET IO communications with RS-485 interface. Business Impact: Seamless PLC/SCADA networking and remote diagnostics cut down on on-site maintenance visits. Application: Factory automation environments that require robust, multi-network integration. Feature: IP21 protection and EN/NEMA Type 1 enclosure support indoor mounting and dependable protection from dust ingress. Business Impact: Lower downtime, safer operation, and compliant enclosure options for standard control rooms. Application: Indoor pump stations and protected equipment rooms in solar farms. Feature: Included control unit and PC connection facilitate quick setup and troubleshooting. Business Impact: Accelerated commissioning, easier parameter tuning, and faster fault resolution. Application: Turnkey drives for solar-pumped irrigation systems and water-management projects.
