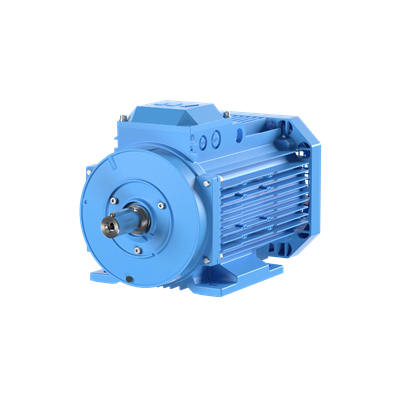

3GAA104001-ASE
Part Number: 3GAA104001-ASE
Product Information
ABB Type Designation
M3AA 100LA 8
Invoice Description
M3AA 100LA 8
Product Name
3-Phase squirrel cage motor
Product Type
3AA2__M3AA_IE2_AA
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Poland (PL) | China (CN) | Sweden (SE)
Customs Tariff Number
85015100
Replaced Product ID (OLD)
3GAA104001-ASA
Stocked At (Warehouses)
Shanghai, China
Medium Description
0.75kW, 8 Poles, Frame Size 100, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA104001-ASE)
Short Description
0.75kW, 8P, Frame Size 100, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
Y
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
0.75 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
8
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
Frame Material
Aluminum
Frame Size
100
Bearing
6306-2Z/C3
Bearing NDE
6205-2Z/C3
Lubrication
For life
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
351 mm
Product Net Height
237 mm
Product Net Width
200 mm
Product Net Weight
20 kg
Gross Weight
20.65 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
SCIP
27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)
Standards
IEC 60034-1
UNSPSC
26101100
