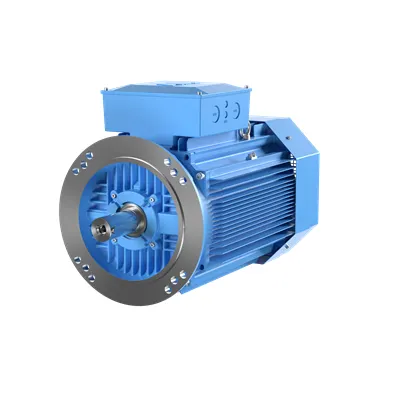

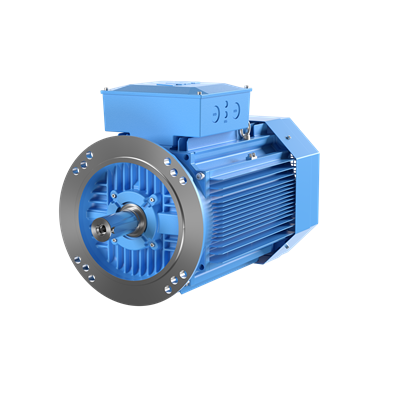

3GAA253220-BSG
Part Number: 3GAA253220-BSG
Product Information
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Obsolete
Quote Only
No
Stocked At Warehouses
NOATDRLCEXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
M3AA 250SMB 6
Invoice Description
M3AA 250SMB 6
Product Name
3-Phase squirrel cage motor
Product Type
3AA2__M3AA_IE2_AA
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI) | Poland (PL)
Customs Tariff Number
85015290
Replaced Product ID (OLD)
3GAA253032-BSG
Medium Description
45kW, 6 Poles, Frame Size 250, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAA253220-BSG)
Short Description
45kW, 6P, Frame Size 250, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
Y
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
45 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 93.4 % | Partial Load (75%) 94.0 % | Partial Load (50%) 93.6 %
IE Class Data (60 Hz)
IE Class IE2 | Full Load (100%) 93.7 % | Partial Load (75%) 94.2 % | Partial Load (50%) 93.7 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
Frame Material
Aluminum
Frame Size
250
Bearing
6315-2Z/C3
Bearing NDE
6213-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
884 mm
Product Net Height
627 mm
Product Net Width
473 mm
Product Net Weight
341 kg
Gross Weight
351 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
SCIP
27ac6190-e1ce-4080-8654-6552aaabbe58 Finland (FI)
UNSPSC
26101100
