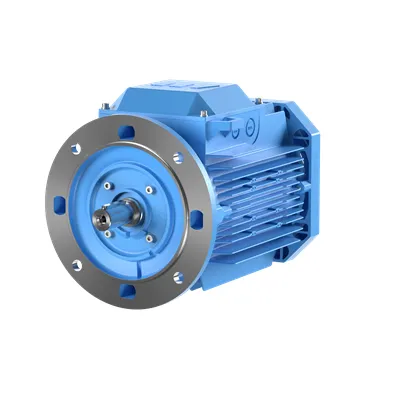

3GAL132237-BSC
Part Number: 3GAL132237-BSC
Product Information
ABB Type Designation
M3AL 132SMC 4
Invoice Description
M3AL 132SMC 4
Product Name
3Phase Synchronous reluctance motor
Product Type
3AL4__M3AL_IE5_SynRM_AA
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Finland (FI)
Customs Tariff Number
85015230
Replaced Product ID (OLD)
3GAL132236-BSC
Stocked At (Warehouses)
Menden, Germany
Medium Description
11kW, 4 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAL132237-BSC)
Short Description
11kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Connection Configuration
Y
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Motor Operational Voltage
380 V
Output Power
11 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE5 | Full Load (100%) 94.0 % | Partial Load (75%) 93.1 % | Partial Load (50%) 90.9 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S9
Voltage Code
S
Frame Material
Aluminum
Frame Size
132
Bearing
6308-2Z/C3
Bearing NDE
6206-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
590 mm
Product Net Height
321 mm
Product Net Width
262 mm
Product Net Weight
47 kg
Gross Weight
52 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC
26101100
