3GBA072410-ASDIN
Part Number: 3GBA072410-ASDIN
Product Information
ABB Type Designation
M2BAX 71MLA 4
Invoice Description
M2BAX 71MLA 4
Product Name

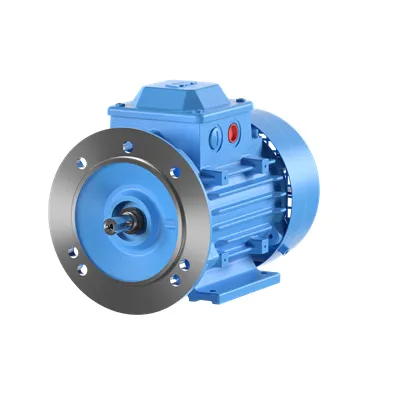

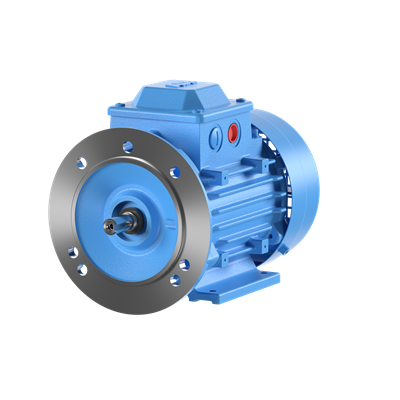

3-Phase squirrel cage motor
Product Type
IBA3__M2BAX_IE3_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015100
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE3 | Full Load (100%) 77.3 % | Partial Load (75%) 76.0 % | Partial Load (50%) 67.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
Frame Material
Cast Iron
Frame Size
71
Bearing
6203-2Z/C3
Bearing NDE
6202-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Weight
12 kg
Gross Weight
15 kg
UNSPSC
26101100
