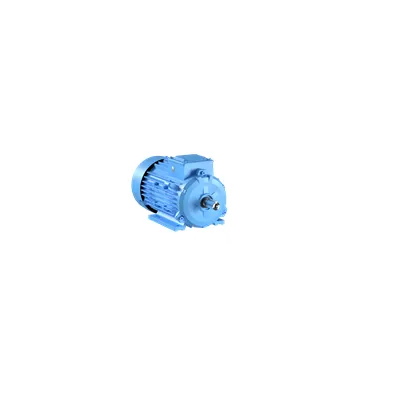

3GBA081310-ASNIN
Part Number: 3GBA081310-ASNIN
Product Information
ABB Type Designation
M2BAX 80MA 2
Invoice Description
M2BAX 80MA 2
Product Name
3-Phase squirrel cage motor
Product Type
IBA4__M2BAX_IE4_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015100
Medium Description
0.75kW, 2 Poles, Frame Size 80, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA081310-ASNIN)
Short Description
0.75kW, 2P, Frame Size 80, 3PH, 415V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
Y
Temperature Class Default
--
Input Voltage (Uin)
415 V
Frequency (f)
50 Hz
Output Power
0.75 kW
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 83.5 % | Partial Load (75%) 83.9 % | Partial Load (50%) 82.9 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
Frame Material
Cast Iron
Frame Size
80
Bearing
6204-2Z/C3
Bearing NDE
6204-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
327 mm
Product Net Height
195 mm
Product Net Width
164 mm
Product Net Weight
15 kg
Gross Weight
18 kg
UNSPSC
26101100
