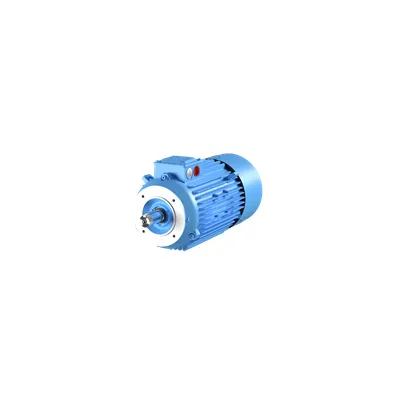

ABB 3GBA083320-CDC 3-Phase Motor - IE2 IP55 IMB14/IM3601
Part Number: 3GBA083320-CDC
Quick Summary
ABB 3GBA083320-CDC is a high‑efficiency 0.55 kW three‑phase motor for general‑purpose automation and conveyors. Clients often struggle with rising energy costs and unplanned downtime, which this IE2 motor helps reduce through lower electrical input and cooler running. Its IP55 enclosure, IC411 insulation, and 6‑pole configuration provide reliability across demanding environments, while maintaining compatibility with standard ABB drives. The cast‑iron frame and IMB14/IM3601 mounting simplify installation and service life in harsh factory floors. With Poland as the country of origin and a 0 day lead time, procurement teams can quote quickly and manage supply risk while meeting local compliance and warranty terms.
Product Information
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
NOATDRLCEXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
M2BAX 80MB 6
Invoice Description
M2BAX 80MB 6
Product Name
3-Phase squirrel cage motor
Product Type
EBA2__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
Poland (PL)
Customs Tariff Number
85015100
Medium Description
0.55kW, 6 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GBA083320-CDC)
Short Description
0.55kW, 6P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB14/IM3601
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
0.55 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 73.1 % | Partial Load (75%) 71.1 % | Partial Load (50%) 66.4 %
IE Class Data (60 Hz)
IE Class IE2 | Full Load (100%) 68.0 % | Partial Load (75%) 63.9 % | Partial Load (50%) 56.8 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
6
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
80
Bearing
6204-2Z/C3
Bearing NDE
6203-2Z/C3
IM Class
IMB14 IM3601
Terminator Box Location
D-End top
Package Level 1 Units
0 carton
Product Net Depth / Length
309 mm
Product Net Height
192 mm
Product Net Width
164 mm
Product Net Weight
19 kg
Gross Weight
22 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
SCIP
d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland (FI)
UNSPSC
26101100
Feature IE2 high efficiency → Business Impact Lower energy consumption and reduced heat generation → Application Suitable for continuous operation on conveyors, pumps, and general machinery in manufacturing lines. Feature Cast iron frame and IP55 enclosure → Business Impact Enhanced durability and protection against dust, moisture, and mechanical stress → Application Harsh factory environments, outdoor installations, and humid plants benefit from extended motor life and reduced maintenance. Feature 6 poles, 0.55 kW, 400 V, 50 Hz → Business Impact Optimized torque curve and reliable start‑up with standard European power supply → Application Packaging lines, material handling, and automation platforms that require steady speed control. Feature IMB14/IM3601 mounting and D‑connection → Business Impact Simplified installation and seamless integration with existing drive systems and panel wiring → Application Retrofit projects and new builds where mounting compatibility matters. Feature IC411 insulation, Duty S1, IP55 rating → Business Impact Proven thermal endurance and continuous operation within regulated temperatures → Application Continuous‑run applications like cooling fans and integrated automation.“
Get a Quick Quote for a ABB 3GBA083320-CDC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA083320-CDC?
Enquire Now
FAQs
Install the motor on IMB14/IM3601 mounting, ensure D‑connection wiring per the 400 V 50 Hz specification, and verify rotation direction before power application. Use IP55 enclosure seals, perform a proper motor grounding, and connect to a suitable ABB drive if speed control is required. After wiring, run a low‑speed test to confirm torque and alignment.
The motor operates at 400 V, 50 Hz, with 0.55 kW output and IE2 efficiency, which reduces input power for given load and lowers operating temperature. The IP55 enclosure protects against dust and water ingress, enabling reliable operation in dirty or humid environments and reducing maintenance intervals.
Yes. The 6‑pole, 0.55 kW design provides adequate starting torque and steady speed for conveyors and pumps. Cast iron frame and IP55 rating ensure durability against dust, moisture, and mechanical stress, while IC411 insulation supports long continuous duty in typical factory temperatures.
Key specifications to verify include IE2 efficiency class, IP55 enclosure, and IC411 insulation. While the data highlights these ratings, always cross‑check with local regulatory requirements (CE/UL where applicable) and ensure your installation follows national electrical codes and safety standards for motor equipment.
The combination of IE2 efficiency and a robust cast iron frame reduces energy use and vibration, lowering operating costs and wear. The IP55 enclosure and durable bearings (6204‑2Z/C3) support longer service intervals, while IMB14/IM3601 mounting simplifies retrofits and minimizes downtime during replacements or upgrades.
