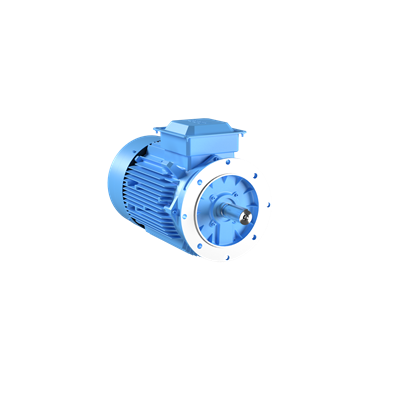

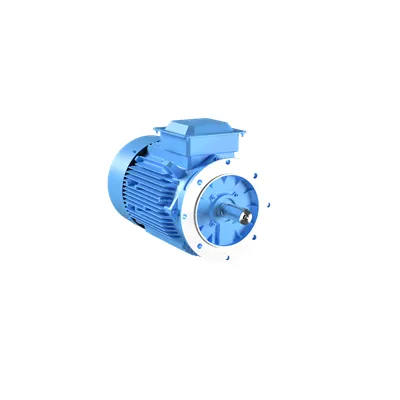

ABB 3GBA182410-BDNIN 3-Phase squirrel cage motor - IP55
Part Number: 3GBA182410-BDNIN
Quick Summary
The ABB 3GBA182410-BDNIN 3-Phase squirrel cage motor powers industrial drives like pumps, fans, and conveyors. Operators struggle with heat, dust, and downtime; this motor's IP55 enclosure and sealed bearings reduce unplanned stops and maintenance. It meets IE4 efficiency, IC411 insulation, and IMB5/IM3001 mounting standards, ensuring performance and compliance in demanding environments. Designed for high-temperature operation with ambient 50 °C and up to 1000 m altitude, it delivers energy savings and reliability for continuous duty. Its cast-iron frame, IP55 protection, and robust bearings simplify installation and service for OEMs and retrofit projects, lowering total cost of ownership and improving uptime through quicker repairs.
Product Information
Extended Description
3GBA182410-BDNIN ABB: 18.5kW, 4 Poles, Frame Size 180, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA182410-BDNIN)
ABB Type Designation
M2BAX 180MLA 4
Invoice Description
M2BAX 180MLA 4
Product Name
3-Phase squirrel cage motor
Product Type
IBA4__M2BAX_IE4_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
India (IN)
Customs Tariff Number
85015230
Short Description
18.5kW, 4P, Frame Size 180, 3PH, 400V, 50Hz, IP55, IMB5/IM3001
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
50 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 94.2 % | Partial Load (75%) 94.4 % | Partial Load (50%) 94.0 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
180
Bearing
6210-2Z/C3
Bearing NDE
6209-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
729 mm
Product Net Height
453 mm
Product Net Width
340 mm
Product Net Weight
222 kg
Gross Weight
232 kg
UNSPSC
26101100
High-efficiency design is central to the ABB 3GBA182410-BDNIN motor, delivering 18.5 kW at 400 V and 50 Hz with IE4 performance (Full Load around 94.2%). This translates into measurable energy savings and reduced heat within gear trains and drive systems, extending motor life and lowering lifecycle costs for pumps and fans in process industries. The IP55 enclosure shields windings and bearings from dust and water spray, enabling reliable operation in harsh manufacturing floors and outdoor installations while maintaining uptime in challenging environments. The cast-iron frame (180) and robust bearings (6210-2Z/C3) provide rugged durability and lower maintenance needs under S1 duty, ideal for conveyors and material handling lines. IMB5/IM3001 mounting support simplifies installation and retrofit projects, minimizing downtime during upgrades. All components are chosen to streamline OEM integration and field service.
Get a Quick Quote for a ABB 3GBA182410-BDNIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA182410-BDNIN?
Enquire Now
FAQs
The motor uses IMB5 IM3001 mounting, with a 180 frame and cast-iron construction, designed to align with standard IEC baseplates and guards. Verify footprint, bolt pattern, and shaft alignment to ensure a seamless retrofit. Ensure 400 V, 50 Hz supply and ambient conditions meet limits (up to 50 °C, 1000 m). Replacement should minimize downtime by matching the M2BAX designation and terminal box location (D-End top).
The motor provides 18.5 kW, 4 poles, rated for 400 V and 50 Hz, with single-speed S1 duty. It features IE4 efficiency and IC411 insulation class, along with a 4-pole configuration for precise motor speed control. The enclosure is IP55, protecting against dust and water ingress, and bearings are 6210-2Z/C3 for long service life.
Yes. The IP55 protection class guards against dust and water spray, and the ambient temperature rating is up to 50 °C with operation up to 1000 m altitude. The IC insulation class IC LF and IE4 efficiency further support reliable performance in hot, dusty factories, outdoor sites, and installations with demanding duty cycles.
The motor satisfies IE4 efficiency with IE Class IE4 data, IC411 insulation, and IMB5/IM3001 mounting standards for robust installation. It uses a cast-iron frame and maintenance-friendly bearings, and supports IMB5 IM3001 mounting with D-End top terminal box positioning, which simplifies integration with existing drive trains.
Energy savings from IE4 efficiency reduce operating costs on a 24/7 duty cycle. The IP55 enclosure and sealed bearings decrease maintenance frequency and downtime, while the heavy-duty cast-iron frame extends service life in harsh environments. With a 1 piece minimum order and straightforward installation, retrofit projects can achieve quicker payback and lower total cost of ownership.
