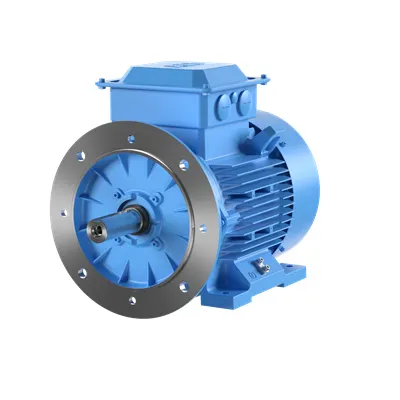

ABB 3GBA182410-HDC 3-Phase Squirrel Cage Motor - IE2
Part Number: 3GBA182410-HDC
Quick Summary
ABB 3GBA182410-HDC is a high-efficiency 18.5 kW, 3-phase squirrel cage motor built for demanding industrial drives. For engineers battling rising energy costs and unexpected downtime, it delivers reliable torque and stable performance across operating loads. The design complies with IE2 efficiency, IP55 enclosure, and IC411 insulation, ensuring safe operation in dusty or damp environments. With a cast-iron frame and standard ABB mounting footprints, it supports rapid installation and streamlined procurement, helping lower total cost of ownership across project lifecycles.
Product Information
Configuration Only
No
Country of Origin
Poland (PL)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
M2BAX 180MLA 4
Invoice Description
M2BAX 180MLA 4
Product Name
3-Phase squirrel cage motor
Product Type
EBA2__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN) | Poland (PL)
Customs Tariff Number
85015230
Medium Description
18.5kW, 4 Poles, Frame Size 180, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBA182410-HDC)
Short Description
18.5kW, 4P, Frame Size 180, 3PH, 400V, 50Hz, IP55, IMB35/IM2001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
18.5 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE2 | Full Load (100%) 91.2 % | Partial Load (75%) 91.4 % | Partial Load (50%) 90.5 %
IE Class Data (60 Hz)
IE Class IE2 | Full Load (100%) 92.4 % | Partial Load (75%) 91.9 % | Partial Load (50%) 90.6 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
180
Bearing
6210-2Z/C3
Bearing NDE
6209-2Z/C3
Lubrication
For life
IM Class
IMB35 IM2001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
683 mm
Product Net Height
433 mm
Product Net Width
340 mm
Product Net Weight
156 kg
Gross Weight
166 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
SCIP
d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland (FI)
Standards
IEC 60034-1
UNSPSC
26101100
Feature: IE2 energy efficiency reduces operating power draw, lowering energy costs over the motor’s life. Business Impact: Lower energy bills and a smaller environmental footprint, improving OPEX for continuous-process applications. Application: ideal for pumps, conveyors, and fans in manufacturing and water treatment. Feature: Cast iron frame and IMB35/IM2001 mounting provide rugged durability and easy retrofit compatibility. Business Impact: longer service intervals, reduced maintenance cost, and straightforward integration with existing installations. Application: retrofits and new builds in heavy industry where mounting consistency matters. Feature: IP55 enclosure and IC411 insulation enable operation in dusty or high-humidity environments. Business Impact: safer operation, fewer nuisance shutdowns, and easier compliance with plant-wide standards. Application: packaging, metal fabrication, and material handling. Feature: 4-pole, 50 Hz design supports S1 duty with reliable startup and steady torque across load variations. Business Impact: predictable performance, reduced downtime, and better process control. Application: continuous processes like pumping stations and ventilation systems. Feature: Life-long lubrication and robust bearings (6209-2Z/C3) reduce maintenance needs. Business Impact: lower maintenance labor and longer bearing life. Application: long-running drives in harsh environments. Feature: Dual-origin sourcing (China/Poland) enables regional procurement flexibility and shorter lead times. Business Impact: faster delivery, minimized supply risk, and improved project scheduling. Application: global rollouts and multi-site installations.
Get a Quick Quote for a ABB 3GBA182410-HDC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA182410-HDC?
Enquire Now
FAQs
This motor uses a D connection and is designed for IMB35/IM2001 mounting in 4-pole, 400 V 50 Hz networks. Ensure mounting dimensions align with the 180 frame size, allow for the cast-iron enclosure, and confirm ambient temperature limits of 40 °C and altitude up to 1000 m. With life-long lubrication and sealed bearings, installation should minimize re-lubrication intervals and maintenance downtime.
At 50 Hz, the motor delivers 18.5 kW output with 4 poles, operating under S1 duty for continuous loads. IE2 efficiency ensures lower energy consumption; full-load efficiency is typically around 91% at 100% load, with favorable partial-load efficiencies (approximately 90.5–91.4% at 75% load). The IP55 enclosure protects internal components in harsh environments.
Yes. The motor features an IP55 enclosure and IC411 insulation, enabling safe operation against dust and moisture while maintaining thermal performance. It is rated for S1 duty, meaning continuous operation, making it suitable for pumps, conveyors, and fans in challenging industrial settings without frequent shutdowns.
The motor complies with IEC 60034-1 and supports IE2 efficiency class, IP55 protection, and IC411 insulation. It carries standard 4-pole, 400 V, 50 Hz specifications and aligns with ABB’s M2BAX 180MLA 4 designation for integration. These features support regulatory compliance and predictable performance in regulated industrial environments.
The 3GBA182410-HDC reduces energy costs through IE2 efficiency and lowers maintenance with life-long lubrication and sealed bearings (6209-2Z/C3). Its rugged cast-iron frame and reliable IMB35/IM2001 mounting facilitate longer service intervals and fewer scheduled downtimes, contributing to a favorable total cost of ownership in continuous-process applications like pumping stations and material handling lines.
