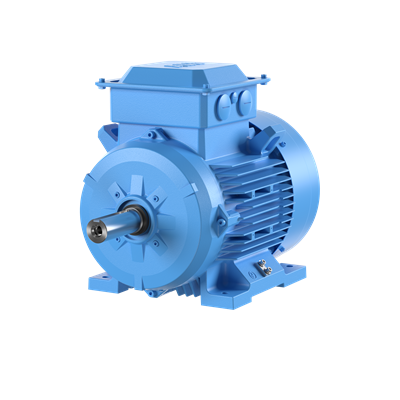

ABB 3GBA182420-AST 3-Phase Squirrel Cage Motor - IP55
Part Number: 3GBA182420-AST
Quick Summary
ABB 3GBA182420-AST 3-Phase Squirrel Cage Motor powers reliable industrial drives in pumps, fans, and conveyors. Upgrading from older equipment often triggers downtime, mounting compatibility issues, and cooling challenges that slow production. With IP55 protection and ICFL insulation, plus robust IMB3 IM1001 mounting and a 4-pole design, this motor performs reliably in tough plants. It supports energy-efficient operation through IE1 ratings, helping reduce operating costs while ensuring compliance with common industrial standards. For engineers and purchasing teams, the blend of durability, install ease, and predictable lifecycle costs translates into faster project realisation and higher overall equipment effectiveness in automation and material handling.
Product Information
ABB Type Designation
M2BAX 180MLB 4
Invoice Description
M2BAX 180MLB 4
Product Name
3-Phase squirrel cage motor
Product Type
EBA1__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015230
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE1 | Full Load (100%) 89.9 % | Partial Load (75%) 89.7 % | Partial Load (50%) 88.3 %
IE Class Data (60 Hz)
IE Class IE1 | Full Load (100%) 91.0 % | Partial Load (75%) 90.1 % | Partial Load (50%) 88.1 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
S
Frame Material
Cast Iron
Frame Size
180
Bearing
6210-2Z/C3
Bearing NDE
6209-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
169 kg
Gross Weight
179 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: Cast Iron frame and 180 mm frame size provide rigid structure and effective heat dissipation. Business Impact: Reduces vibrational wear on bearings and enables longer service intervals, lowering maintenance costs. Application: Ideal for high-load conveyors, gear pumps, and process-line motors operating in tight plant spaces. Feature: IP55 protection and ICFL insulation support harsh environments. Business Impact: Protects windings from dust and moisture, increasing uptime and safety in dusty workshops and outdoor installations. Application: Suitable for packaging lines, water treatment, and material handling in variable ambient conditions. Feature: IE1 energy efficiency with Full Load around 89.9% at 50 Hz and 91.0% at 60 Hz. Business Impact: Delivers measurable energy savings and helps meet corporate sustainability targets. Application: Pumps, fans, and general purpose drives where energy costs are a concern. Feature: 4-pole design, S1 Duty, and IMB3 IM1001 with bearings 6210-2Z/C3. Business Impact: Predictable torque, reduced maintenance, and reliable operation in fixed-speed drives. Application: Retrofit projects and new builds in manufacturing and process plants. Feature: Altitude up to 1000 m and ambient 40 °C, plus IP55 protection and cast iron frame. Business Impact: Versatile across location and orientation, reducing need for special adapters. Application: Industrial automation in plants with space constraints and challenging environmental conditions.
Get a Quick Quote for a ABB 3GBA182420-AST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA182420-AST?
Enquire Now
FAQs
The 180 mm frame size and IMB3 IM1001 mounting class align with standard industrial mounting footprints, making retrofits and replacements straightforward. Its cast iron frame provides rigidity that minimizes misalignment, while the D-End top termination location supports efficient wiring and service access. This compatibility reduces downtime and simplifies procurement for conveyors and pumps.
IP55 protection guards against dust ingress and moisture, while the ICFL insulation class supports elevated operating temperatures typical in harsh plants. Coupled with a 40 °C ambient rating and up to 1000 m altitude tolerance, the motor remains reliable in outdoor installations, production floors with heavy dust, and exposed equipment such as crushers and packaging lines.
Yes. It features S1 continuous duty, a 4-pole configuration, and IE1 efficiency, ensuring steady performance and energy efficiency under constant operation. The IMB3 IM1001 mounting and robust bearings further support long service life in continuous-running drives found in circulating pumps and material-handling conveyors.
The motor uses a cast iron frame with bearings 6210-2Z/C3 and 6209-2Z/C3, which are chosen for longevity and low-friction operation. This reduces lubrication frequency and bearing wear, yielding lower maintenance costs and longer intervals between service windows, benefiting total cost of ownership in manufacturing lines.
With IE1 efficiency ratings and a 4-pole design, the motor delivers reliable performance while minimizing energy consumption in continuous-duty applications. This translates to tangible energy savings on pumps and fans, faster payback in retrofit projects, and improved overall equipment effectiveness (OEE) across automation and process-line operations.
