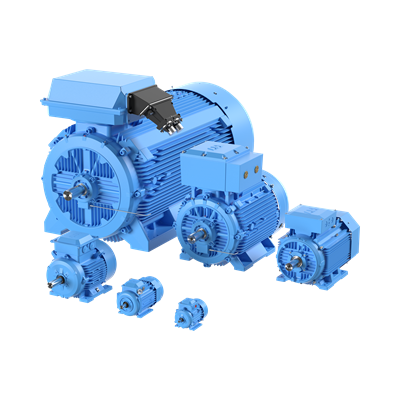

ABB 3GBA201410-ADPCN 3-Phase squirrel cage motor - IE4 IP55
Part Number: 3GBA201410-ADPCN
Quick Summary
ABB 3GBA201410-ADPCN is a 3-phase squirrel cage motor for industrial drives. Engineers seek reliable, energy-efficient solutions that minimize downtime in harsh plant environments. This model delivers IE4 efficiency, IP55 enclosure protection, and IC411 electrical class, supporting robust operation in automation lines. With a cast-iron frame and a compact 200 frame size, it integrates easily into existing systems, delivering lower life-cycle costs and improved uptime for industrial motors in manufacturing, packaging, and processing facilities.
Product Information
ABB Type Designation
M2BAF 200MLA 2
Invoice Description
M2BAF 200MLA 2
Product Name
3-Phase squirrel cage motor
Product Type
CBF4__M2BAF_IE4_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015230
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 94.5 % | Partial Load (75%) 95.1 % | Partial Load (50%) 94.9 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
200
Bearing
6312-2Z/C3
Bearing NDE
6212-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
263 kg
Gross Weight
273 kg
UNSPSC
26101100
IE4 energy efficiency is the core feature, delivering lower running costs in continuous operations and helping meet corporate energy targets across manufacturing lines. This translates to tangible savings in conveyors, pumps, and process fans, while reducing heat load and improving overall plant resilience. The IP55 protection and 40 °C ambient tolerance enable reliable performance in dusty and humid environments, making it suitable for assembly lines, metalworking, and outdoors in protected setups. The IC411 insulation class combined with an altitude rating up to 1000 m ensures dependable operation in high-temperature applications, supporting long service life in challenging process environments and simplifying compliance with electrical safety standards. A robust cast-iron frame (200) and bearings chosen for durable, low-maintenance operation minimize vibration and downtime in heavy-load applications such as material handling and packaging lines. The D-End top terminator box simplifies wiring, while the 2-pole, S1 duty configuration supports steady, reliable performance in continuous operation scenarios, reducing retrofit risk and easing integration with standard control schemes.
Get a Quick Quote for a ABB 3GBA201410-ADPCN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA201410-ADPCN?
Enquire Now
FAQs
This motor uses a conventional 200 frame with a D-End top terminator box, facilitating straightforward wiring into standard industrial control panels. Its IP55 enclosure protects against dust and water jets, enabling installation in challenging factory environments. Ensure the control panel is sized for a 2-pole, S1-duty motor and provides appropriate thermal management to maintain 40 °C ambient operation at up to 1000 m elevation.
Key specs include IE4 efficiency for reduced energy consumption, IP55 protection for rugged environments, and IC411 electrical class. The motor is a 2-pole, 3-phase unit designed for continuous (S1) duty. The frame is 200 with a cast-iron body, and the unit operates under 40 °C ambient conditions up to 1000 m altitude, making it suitable for a wide range of automation applications.
Yes. The M2BAF 200MLA 2 designation indicates a robust continuous-duty configuration, with IP55 protection and IE4 efficiency ideal for long-running conveyor systems. The 2-pole design provides high starting torque, while the S1 duty rating supports uninterrupted operation. For food-grade installations, ensure auxiliary hygiene and cleaning protocols align with your facility requirements.
The motor delivers IE4 high efficiency, IP55 enclosure protection, and IC411 electrical class protection, along with an IC Insulation Class designation of ICLF. It also carries a 200 frame cast-iron construction and a D-End top terminator box. While CE markings are common in many markets, verify local compliance requirements for your region and integration with your control system.
Maintenance benefits stem from durable cast-iron construction and proven bearings (6312-2Z/C3 and 6212-2Z/C3) that resist wear in high-load conditions. The single-piece S1 continuous duty design reduces frequent stop/start cycling, lowering bearing wear and energy spikes. Regular inspection should focus on bearing lubrication intervals, insulation integrity, and terminal box seals to preserve IP55 protection and overall reliability.
