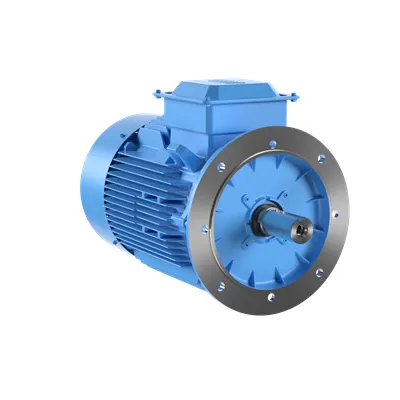

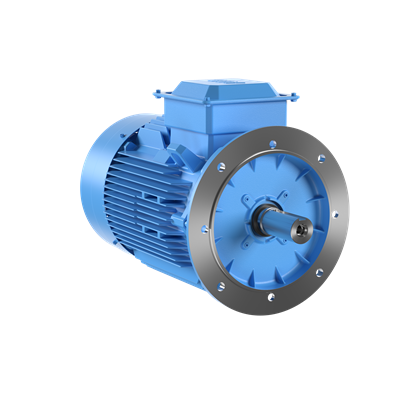

ABB 3GBA201420-BDT 3-Phase Squirrel Cage Motor - IP55
Part Number: 3GBA201420-BDT
Quick Summary
ABB 3GBA201420-BDT 3-Phase squirrel cage motor delivers reliable torque for industrial conveyors and pumps. Engineers confront downtime, variable loads, and high maintenance costs in harsh plant environments. With IP55 protection, ICFL insulation, and IE1 efficiency, this motor meets demanding standards while helping reduce energy use. Built for heavy-duty manufacturing, the 200 frame cast-iron design offers durability and smooth integration with standard VFDs, while the 2-pole, S1 duty optimizes uptime and lifecycle costs.
Product Information
ABB Type Designation
M2BAX 200MLB 2
Invoice Description
M2BAX 200MLB 2
Product Name
3-Phase squirrel cage motor
Product Type
EBA1__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN)
Customs Tariff Number
85015230
Electrical Data
Temperature Class Default
--
Altitude
1000 m
Ambient Temperature
40 Ā°C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE1 | Full Load (100%) 91.2 % | Partial Load (75%) 91.2 % | Partial Load (50%) 90.8 %
IE Class Data (60 Hz)
IE Class IE1 | Full Load (100%) 91.5 % | Partial Load (75%) 90.9 % | Partial Load (50%) 89.6 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
2
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
200
Bearing
6212-2Z/C3
Bearing NDE
6209-2Z/C3
IM Class
IMB5 IM3001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Weight
229 kg
Gross Weight
239 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Cast-iron frame and high-quality bearings deliver durable housing that resists vibration and wear, extending bearing life and reducing unexpected downtime. This supports higher line availability in continuous-process lines such as conveyors and pumps, where steady torque and low maintenance are crucial. IP55 enclosure protects internal components from dust and water ingress, enabling reliable operation in challenging environments and reducing service calls after dusting or washing cycles. IE1 efficiency data (50 Hz and 60 Hz) provides measurable energy savings, leading to lower operating costs and compliance with energy standards in plants with tight utility budgets. The 2-pole, S1 duty profile is optimized for constant-speed operation, delivering predictable performance in fans, pumps, and material-handling equipment. A cast-iron frame with a 200 frame size and a weight around 229 kg offers robust compatibility with existing mounting and coupling arrangements, simplifying retrofits and new installs in limited floor space. Field wiring is facilitated by the D-End top terminator box, enabling easier installation in constrained or crowded plant layouts. Additional robustness comes from bearings 6212-2Z/C3 and 6209-2Z/C3, supporting long service intervals in demanding industrial settings.
