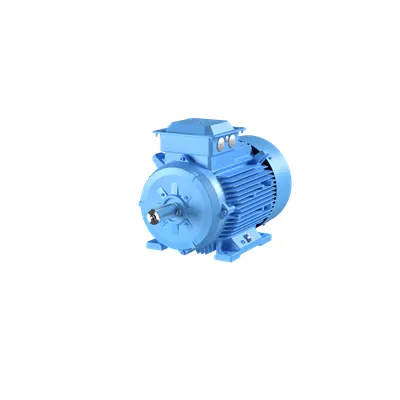

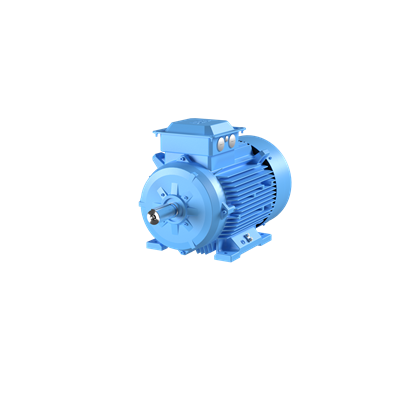

ABB 3GBA202410-ADN Motors & Drives - IE4 Super Premium
Part Number: 3GBA202410-ADN
Quick Summary
ABB 3GBA202410-ADN is a high‑efficiency three‑phase motor designed for demanding industrial drives. Operators and engineers face rising energy costs and unplanned downtime; this motor helps reduce both through IE4 performance and rugged construction. It delivers IP55 protection and IC411 insulation, enabling reliable operation in harsh environments and across variable ambient temperatures. With IMB3/IM1001 mounting and a cast‑iron frame, it’s designed for long service life in process lines, conveyors, pumps, and other continuous‑duty applications. The 400 V, 50 Hz rating supports common European and global power systems, while the compact 200 frame size fits tighter spaces without compromising strength. This combination drives lower total cost of ownership and easier procurement for maintenance teams.
Product Information
ABB Type Designation
M2BAX 200MLA 4
Invoice Description
M2BAX 200MLA 4
Product Name
3-Phase squirrel cage motor
Product Type
EBA4__M2BAX_CI
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
China (CN) | Poland (PL)
Customs Tariff Number
85015230
Stocked At (Warehouses)
Menden, Germany
Medium Description
30kW, 4 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA202410-ADN)
Short Description
30kW, 4P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Electrical Data
Connection Configuration
D
Temperature Class Default
--
Input Voltage (Uin)
400 V
Frequency (f)
50 Hz
Output Power
30 kW
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
IC411
IE Class Data (50 Hz)
IE Class IE4 | Full Load (100%) 94.9 % | Partial Load (75%) 94.9 % | Partial Load (50%) 94.1 %
IP Class
IP55
Insulation Class
ICLF
Direction of Rotation
Both sides
Number of Poles (High)
4
Two Speed Motor
No
Type of Duty
S1
Voltage Code
D
Frame Material
Cast Iron
Frame Size
200
Bearing
6312-2Z/C3
Bearing NDE
6212-2Z/C3
IM Class
IMB3 IM1001
Terminator Box Location
D-End top
Package Level 1 Units
0 pallet (lift)
Product Net Depth / Length
810 mm
Product Net Height
514 mm
Product Net Width
378 mm
Product Net Weight
276 kg
Gross Weight
286 kg
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC
26101100
Feature: IE4 Super Premium efficiency delivers substantial energy savings and reduced running costs. Business Impact: Lower energy bills, improved motor efficiency across full and partial loads, and a smaller carbon footprint. Application: Suitable for pumps, fans, and conveyors in manufacturing environments where energy intensity is high and reliability is critical. Feature: Cast Iron Frame 200 with IMB3/IM1001 mounting and robust bearings (6312-2Z/C3) provides rugged durability. Business Impact: Longer bearing life, reduced maintenance intervals, and improved vibration control in heavy machinery. Application: Heavy-duty line equipment, processing plants, and packaging lines subject to dynamic loads. Feature: IP55 enclosure and IC411 insulation enable operation in demanding environments. Business Impact: Protected from dust and water ingress, extended insulation life, and safer operation at higher ambient temperatures. Application: Outdoor installations, damp facilities, and machines operating at 40 °C ambient. Feature: 30 kW, 4-pole, 400 V, 50 Hz design simplifies integration with standard plant power. Business Impact: Faster commissioning, streamlined electrical design, and broad compatibility across global sites. Application: Continuous‑duty drives in conveyors, pumps, and fans. Feature: S1 duty, 1000 m altitude rating, and IMB3/IM1001 mounting provide reliability for diverse plants. Business Impact: Predictable performance with lower risk of unexpected shutdowns, easing maintenance planning. Application: Process industries and manufacturing lines where uptime is critical. Feature: Insulation Class ICLF and IC Class IC411 ensure safe operation under elevated temperatures. Business Impact: Higher service margins in hot environments and reduced risk of insulation failures. Application: High‑duty cycle applications in demanding industrial settings.
Get a Quick Quote for a ABB 3GBA202410-ADN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3GBA202410-ADN?
Enquire Now
FAQs
ABB 3GBA202410-ADN uses IMB3/IM1001 mounting and a D‑connection configuration, compatible with 400 V 50 Hz electrical systems. The motor is a 200 frame with a cast‑iron housing, designed to fit standard machine frames and minimize alignment challenges. This combination reduces vibration, simplifies installation, and lowers downtime during commissioning.
This motor is rated IE4 for high efficiency. In full load, the efficiency is 94.9%. At partial loads of 75% and 50%, the efficiency remains around 94.9% and 94.1% respectively, ensuring strong energy performance across operating conditions. Output is 30 kW with a 4‑pole configuration for reliable continuous operation.
Yes. The motor is designed for S1 continuous duty, with IP55 protection and IC411 insulation, supporting operation in dusty, damp, and warm environments. Altitude up to 1000 m and ambient temperatures up to 40 °C are accommodated, making it suitable for a wide range of global plant conditions.
Ideal applications include pumps, fans, and conveyors in manufacturing and process industries where reliability and energy efficiency matter. The 30 kW, 4-pole design, IP55 enclosure, and IMB3/IM1001 mounting make it well suited for heavy-duty material handling, water/wastewater systems, and industrial automation lines requiring robust, long-life motors.
Plan for 400 V, 50 Hz power compatibility and ensure space for a 200 frame with cast-iron construction. The motor’s IP55 rating supports outdoor or damp environments, while IC411 insulation and IE4 efficiency reduce long-term operating costs. It is stocked in Europe (Menden, Germany) with a CN/PL origin mix and tariff code 85015230 for customs planning.
